Danho
ZIMSEC O Level · 4004/2 · N2019

Mathematics Paper 2 November 2019 (topical set)

Questions
49
Total marks
136
Time allowed
150 min
Syllabus code
4004/2

These questions are attributed to this sitting but were printed in a topical collection, so this is not the whole paper as it was sat.

Sit this paper online

Questions
49
Pass mark
30
Sit this paper

Answer every question in the printed order, get marked at the end, then see the answers.

The questions

Question 5

[11 marks]Constructions & Loci
Use ruler and compasses only for all constructions and show clearly all construction lines and arcs. All constructions should be done in a single diagram. ABCD is a trapezium in which AB = 6,5 cm, AD = 5,2 cm, angle ABC = 120 degrees and AD is perpendicular to AB. DC is parallel to AB. (a) (i) Construct the trapezium ABCD. [6] (ii) Construct the bisector of angle ABC. [2] (b) Describe the locus of points that the bisector of angle ABC represents. [2] (c) Measure and write down the length of BC. [1]

Answer this when you sit the paper.

Question 7

[12 marks]Consumer Arithmetic

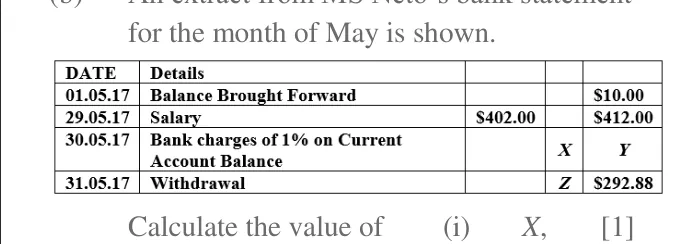

(a) During a sale, all prices were reduced by 15%. Calculate the original price of a jacket that was bought for $55. [3] (b) An extract from MS Neto's bank statement for the month of May is shown. 01.05.17 Balance Brought Forward, balance 10.00;29.05.17Salary10.00; 29.05.17 Salary 402.00, balance $412.00; 30.05.17 Bank charges of 1% on Current Account Balance, amount X, balance Y; 31.05.17 Withdrawal, amount Z, balance $292.88. Calculate the value of (i) X, [1] (ii) Y, [1] (iii) Z. [1] (c) Omega decides to invest her pension of $600. OPTION A: She can invest it in a bank that offers 4% per year Simple Interest. OPTION B: She can invest it in a money market fund that offers 4% per year Compound Interest. Calculate (i) Omega's interest under Option A at the end of 3 years, [2] (ii) Omega's interest under Option B at the end of 3 years, [3] (iii) the difference between the amounts of interest from the two options. [1]

Answer this when you sit the paper.

Question 101

[1 marks]Fractions, Decimals & Percentages
Simplify 4 - (1 3/4 + 1 2/3).

Answer this when you sit the paper.

Question 102

[2 marks]Approximations & Estimations
It is given that y = 5.3 and z = 4.2, both given to 1 decimal place. Find the minimum possible value of yz. Give the answer correct to 2 decimal places.

Answer this when you sit the paper.

Question 103

[5 marks]Ratios, Rates & Proportions
A hotel has Executive rooms and General rooms in the ratio 3 : 5 respectively. A General room costs $19.00 per day. On a certain day, all the 2 928 rooms were occupied by both Executive and General customers and the total takings from the rooms amounted to $66 612.00. (i) Find the number of General rooms in the hotel. [2] (ii) Calculate the cost per day of an Executive room. [3]

Answer this when you sit the paper.

Question 201

[5 marks]Matrices
Matrix A = (x + 2, 14; 3, 3). The determinant of matrix A is less than 7. (i) Find the largest integer value of x. (ii) Find A^-1, the inverse of matrix A, using the value of x in (a)(i).

Answer this when you sit the paper.

Question 202

[5 marks]Vector Geometry

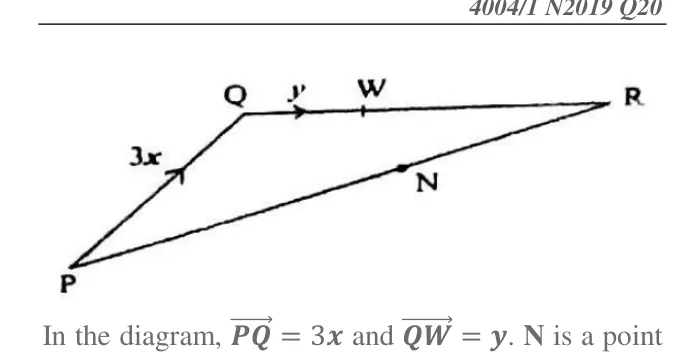

In the diagram, PQ = 3x and QW = y. N is a point on PR such that PN = 2NR. QW is produced to R such that QW : WR = 1 : 5. Express the following in terms of x and/or y (i) QR, [1] (ii) PR, [1] (iii) PN, [1] (iv) QN. [2]

Answer this when you sit the paper.

Question 401

[4 marks]Measures & Mensuration
A sweet shop sells cylindrical sweets each of diameter 3,8 cm and length 4,9 cm. In this question take pi to be 22/7. (i) Calculate the volume of one sweet. (ii) If the mass of 1 cm^3 of the sweet is 0,63 g, calculate the mass of a sweet, giving the answer to the nearest gramme.

Answer this when you sit the paper.

Question 402

[7 marks]Measures & Mensuration

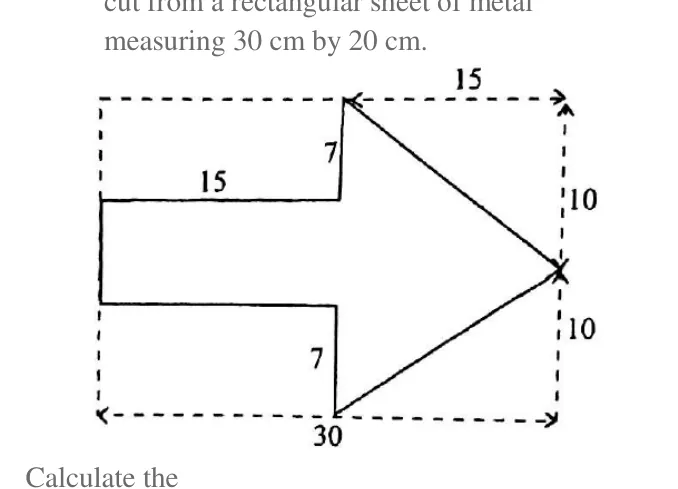

The diagram shows an arrow for a signpost cut from a rectangular sheet of metal measuring 30 cm by 20 cm. The tail of the arrow is a rectangle 15 cm long whose top and bottom edges are each 7 cm from the edges of the sheet, and the head is a triangle whose base is the full 20 cm height and whose apex is 15 cm to the right. Calculate the (i) area of the arrow, (ii) perimeter of the arrow.

Answer this when you sit the paper.

Question 601

[2 marks]Laws of Indices
Solve the equation 3^k = (81^2 x 3^5)/3^11.

Answer this when you sit the paper.

Question 602

[4 marks]Factorisation, H.C.F & L.C.M
Factorise completely (i) 6y^2 - 10y + 4, (ii) ax + b + a + bx.

Answer this when you sit the paper.

Question 603

[3 marks]Algebraic Fractions
Express 6/(2x - x^2) - 3/x as a single fraction in its simplest form.

Answer this when you sit the paper.

Question 604

[3 marks]Variation
It is given that p is proportional to t^-3 and that p = 4 when t = 2. (i) Find a formula connecting p and t. [2] (ii) Find the value of t when p = 1/2. [1]

Answer this when you sit the paper.

Question 802

[5 marks]Quadratic Equations
(ii) Solve the equation 3x^2 - 4x - 16 = 0, giving the answers correct to 3 significant figures.

Answer this when you sit the paper.

Question 901

[1 marks]Statistics & Probability

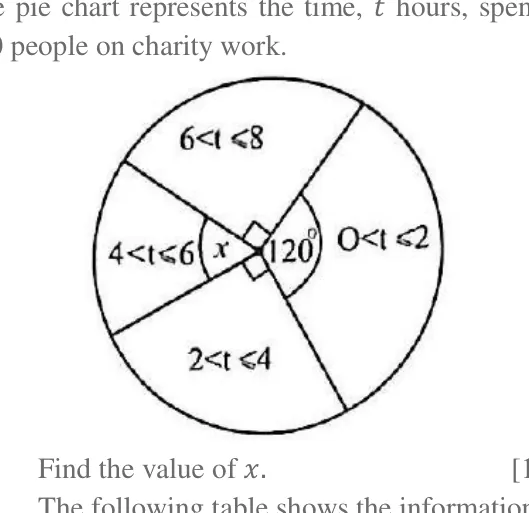

The pie chart represents the time, t hours, spent by 240 people on charity work. The chart has four sectors: 0 < t <= 2 with an angle of 120 degrees, 6 < t <= 8 and 2 < t <= 4 each marked as a right angle, and 4 < t <= 6 with an angle of x. Find the value of x.

Answer this when you sit the paper.

Question 903

[3 marks]Statistics & Probability
The pie chart represents the time, t hours, spent by 240 people on charity work. The frequencies are: 0 < t <= 2: 80, 2 < t <= 4: 60, 4 < t <= 6: 40, 6 < t <= 8: 60. Calculate an estimate of the mean time spent on charity work.

Answer this when you sit the paper.

Question 904

[2 marks]Statistics & Probability
The pie chart represents the time, t hours, spent by 240 people on charity work. The frequencies are: 0 < t <= 2: 80, 2 < t <= 4: 60, 4 < t <= 6: 40, 6 < t <= 8: 60. Two people are chosen at random from the whole group, find the probability that they both spent more than 4 hours doing charity work.

Answer this when you sit the paper.

Question 905

[3 marks]Statistics & Probability
The time, t hours, spent by 240 people on charity work is grouped as 0 < t <= 2: 80 people, 2 < t <= 4: 60 people, 4 < t <= 6: 40 people, 6 < t <= 8: 60 people. A frequency polygon is drawn by plotting each frequency at the mid-point of its class. State the coordinates of the point plotted for the class 6 < t <= 8.

Answer this when you sit the paper.

Question 1001

[1 marks]Functional Graphs
The following is a table of values for the function f(x) = x^3 - 4x^2 + 4, with x = -1, -1/2, 0, 1/2, 1, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4 giving f(x) = -1, 2,9, 4, 3,1, 1, -1,6, -4, -5,4, p, -2,1, 4. Find the value of p.

Answer this when you sit the paper.

Question 1002

[4 marks]Functional Graphs
State the coordinates of the point where the graph of f(x) = x^3 - 4x^2 + 4 crosses the y axis.

Answer this when you sit the paper.

Question 1101

[1 marks]Inequalities & Linear Programming
A school's agriculture department intends to plant beans and peas in its 5-hectare field. Let x be the area in hectares required for beans and y the area in hectares under peas. Write down an inequality in x and y which satisfies this condition.

Answer this when you sit the paper.

Question 1102

[2 marks]Inequalities & Linear Programming
Beans require 2 bags of fertilizers per hectare while peas require 4 bags of fertilizers per hectare. The department has 16 bags of fertilizers for this project. Write down another inequality in x and y and show that it reduces to x + 2y <= 8.

Answer this when you sit the paper.

Question 1103

[2 marks]Inequalities & Linear Programming
The department wishes to plant at least one hectare of each crop. Write down two inequalities, one in x and the other in y, that satisfy these conditions.

Answer this when you sit the paper.

Question 1104

[4 marks]Inequalities & Linear Programming
The lines x = 1 and x + 2y = 8 are drawn on the same axes. Calculate the coordinates of the point where they cross.

Answer this when you sit the paper.

Question 1202

[3 marks]Geometrical Transformation
Triangle B has vertices at (2; 3), (2; 0) and (4; 0). Triangle C is the image of triangle B under an enlargement with centre (2; -1) and enlargement factor of -1 1/2. Draw and label triangle C.

Answer this when you sit the paper.

Question 1203

[1 marks]Geometrical Transformation
Point (-2; 2) is translated onto (6; -2). Find the translation vector.

Answer this when you sit the paper.

Question 1204

[3 marks]Geometrical Transformation
Triangle A has vertices at (-5; 2), (-2; 2) and (-2; 4). Triangle D is the image of triangle A under a transformation represented by the matrix (1 0; -2 1). Find the coordinates of the vertices of triangle D.

Answer this when you sit the paper.

Question 1205

[3 marks]Geometrical Transformation
Triangle A has vertices at (-5; 2), (-2; 2) and (-2; 4) and triangle B has vertices at (2; 3), (2; 0) and (4; 0). Describe fully the single transformation that maps triangle A onto triangle B.

Answer this when you sit the paper.

Question 30101

[1 marks]Circle Geometry

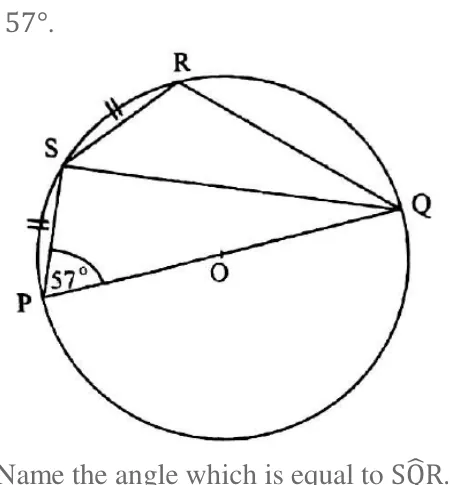

In the diagram, P, Q, R and S are points on the circumference of a circle centre O. POQ is a diameter of the circle. Arcs PS and SR are equal. angle QPS = 57. Name the angle which is equal to angle SQR.

Answer this when you sit the paper.

Question 30102

[1 marks]Circle Geometry
In the diagram, P, Q, R and S are points on the circumference of a circle centre O. POQ is a diameter of the circle. Arcs PS and SR are equal. angle QPS = 57. Find angle PQS.

Answer this when you sit the paper.

Question 30103

[1 marks]Circle Geometry
In the diagram, P, Q, R and S are points on the circumference of a circle centre O. POQ is a diameter of the circle. Arcs PS and SR are equal. angle QPS = 57. Find angle QRS.

Answer this when you sit the paper.

Question 30104

[2 marks]Circle Geometry
In the diagram, P, Q, R and S are points on the circumference of a circle centre O. POQ is a diameter of the circle. Arcs PS and SR are equal. angle QPS = 57. Find angle QSR.

Answer this when you sit the paper.

Question 30201

[2 marks]Trigonometry, Bearing & Distances

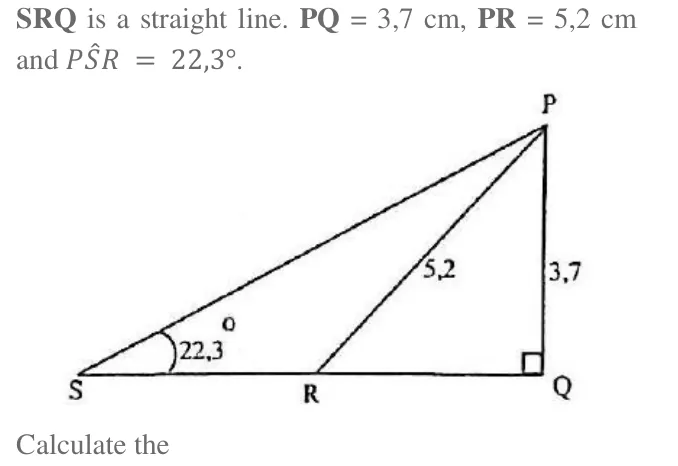

In the diagram, triangle PQS is right-angled at Q. SRQ is a straight line. PQ = 3,7 cm, PR = 5,2 cm and angle PSR = 22,3 degrees. Calculate the length of PS.

Answer this when you sit the paper.

Question 30202

[2 marks]Trigonometry, Bearing & Distances
In the diagram, triangle PQS is right-angled at Q. SRQ is a straight line. PQ = 3,7 cm, PR = 5,2 cm and angle PSR = 22,3 degrees. Calculate angle SPR.

Answer this when you sit the paper.

Question 30203

[2 marks]Trigonometry, Bearing & Distances
In the diagram, triangle PQS is right-angled at Q. SRQ is a straight line. PQ = 3,7 cm, PR = 5,2 cm and angle PSR = 22,3 degrees. Calculate angle QPR.

Answer this when you sit the paper.

Question 80101

[2 marks]Change of Subject of Formula
It is given that A = h(12 + b)/2. Find the value of A when b = 1,5 and h = 0,8.

Answer this when you sit the paper.

Question 80102

[3 marks]Change of Subject of Formula
It is given that A = h(12 + b)/2. Express h in terms of A and b.

Answer this when you sit the paper.

Question 80201

[3 marks]Trigonometry, Bearing & Distances

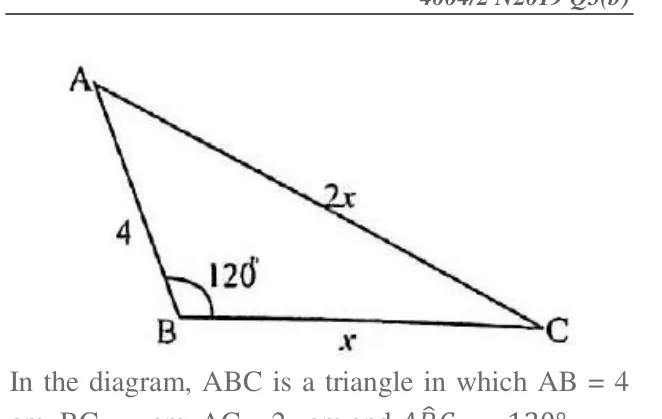

In the diagram, ABC is a triangle in which AB = 4 cm, BC = x cm, AC = 2x cm and angle ABC = 120 degrees. Form an equation in x and show that it reduces to 3x^2 - 4x - 16 = 0.

Answer this when you sit the paper.

Question 90201

[1 marks]Statistics & Probability
The pie chart represents the time, t hours, spent by 240 people on charity work. The sector 0 < t <= 2 has an angle of 120 degrees, the sectors 6 < t <= 8 and 2 < t <= 4 are right angles and the sector 4 < t <= 6 has an angle of 60 degrees. The following table shows the information contained in the pie chart.
Time (t hours): 0 < t <= 2, 2 < t <= 4, 4 < t <= 6, 6 < t <= 8
Frequency: 80, p, q, r
Find the value of p.

Answer this when you sit the paper.

Question 90202

[1 marks]Statistics & Probability
The pie chart represents the time, t hours, spent by 240 people on charity work. The sector 0 < t <= 2 has an angle of 120 degrees, the sectors 6 < t <= 8 and 2 < t <= 4 are right angles and the sector 4 < t <= 6 has an angle of 60 degrees. The following table shows the information contained in the pie chart.
Time (t hours): 0 < t <= 2, 2 < t <= 4, 4 < t <= 6, 6 < t <= 8
Frequency: 80, p, q, r
Find the value of q.

Answer this when you sit the paper.

Question 90203

[1 marks]Statistics & Probability
The pie chart represents the time, t hours, spent by 240 people on charity work. The sector 0 < t <= 2 has an angle of 120 degrees, the sectors 6 < t <= 8 and 2 < t <= 4 are right angles and the sector 4 < t <= 6 has an angle of 60 degrees. The following table shows the information contained in the pie chart.
Time (t hours): 0 < t <= 2, 2 < t <= 4, 4 < t <= 6, 6 < t <= 8
Frequency: 80, p, q, r
Find the value of r.

Answer this when you sit the paper.

Question 100301

[1 marks]Functional Graphs
Use the graph of f(x) = x^3 - 4x^2 + 4 to find the coordinates of the minimum turning point of the graph.

Answer this when you sit the paper.

Question 100302

[3 marks]Functional Graphs
Use the graph of f(x) = x^3 - 4x^2 + 4 to find the roots of the equation x^3 - 4x^2 + 4 = 0.

Answer this when you sit the paper.

Question 100303

[2 marks]Functional Graphs
Use the graph of f(x) = x^3 - 4x^2 + 4 to find the area bounded by the graph, the x-axis and the lines x = 2 and x = 3.

Answer this when you sit the paper.

Question 100304

[1 marks]Functional Graphs
Use the graph of f(x) = x^3 - 4x^2 + 4 to find the range of values of x for which f(x) < -4.

Answer this when you sit the paper.

Question 110501

[2 marks]Inequalities & Linear Programming
The estimated profit is $30,00 per hectare for beans and $40,00 per hectare for peas. Find the area of each crop that should be planted for maximum profit to be realized.

Answer this when you sit the paper.

Question 110502

[1 marks]Inequalities & Linear Programming
Find the expected maximum profit that may be realized, given a profit of $30,00 per hectare for beans and $40,00 per hectare for peas.

Answer this when you sit the paper.

Question 120101

[1 marks]Geometrical Transformation
Triangle A has vertices at (-5; 2), (-2; 2) and (-2; 4). Calculate the area of triangle A.

Answer this when you sit the paper.

Question 120102

[1 marks]Geometrical Transformation
Triangle B has vertices at (2; 3), (2; 0) and (4; 0). State the coordinates of the midpoint of the side joining (2; 3) and (4; 0).

Answer this when you sit the paper.
