Danho
ZIMSEC O Level · 4030/2 · N2017

Mathematics Paper 2 November 2017 (topical set)

Questions
41
Total marks
124
Time allowed
150 min
Syllabus code
4030/2

These questions are attributed to this sitting but were printed in a topical collection, so this is not the whole paper as it was sat.

Sit this paper online

Questions
41
Pass mark
25
Sit this paper

Answer every question in the printed order, get marked at the end, then see the answers.

The questions

Question 6

[9 marks]Constructions & Loci
Use pencil, ruler and compasses only for all constructions and show clearly all construction lines and arcs. All constructions should be on a single diagram. (a) (i) Construct, in a single diagram, triangle AXB such that AX = 5 cm, BX = 7,5 cm and angle AXB = 60 degrees. [3] (ii) Construct the locus of points which are 1. equidistant from XA and XB, [2] 2. 3,5 cm from X. [1] (iii) Show by shading, the region R, in the triangle, such that R is closer to XA than XB and XR is less than or equal to 3,5 cm. [2] (b) Measure and write down the length of AB. [1]

Answer this when you sit the paper.

Question 12

[12 marks]Vector Geometry

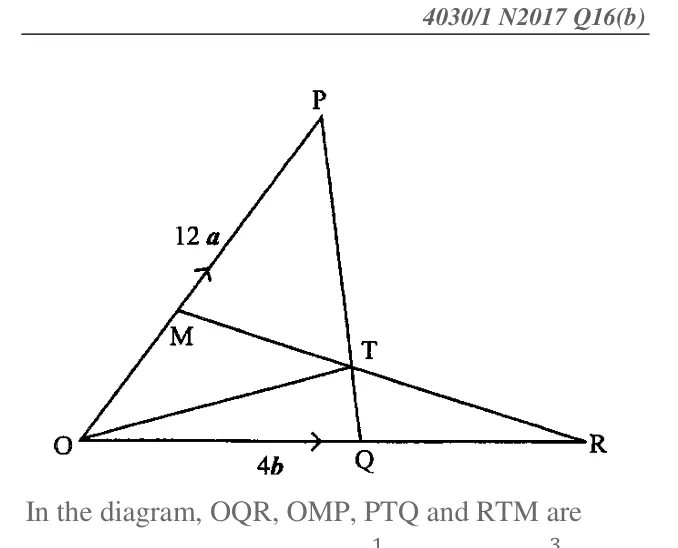

In the diagram, OQR, OMP, PTQ and RTM are straight lines such that OM = (1/3)OP and PT = (3/4)PQ. It is given that OP = 12a and OQ = 4b. (a) Express as simply as possible, in terms of a and/or b (i) PQ, [1] (ii) PT, [1] (iii) OT, [1] (iv) MT. [2] (b) It is given that MR = h MT. Express OR in terms of a and/or b and a constant h. [2] (c)(i) It is given that OR = k OQ. Express OR in terms of a and/or b and a constant k. [1] (ii) Use the expressions for OR in (b) and (c)(i) to find the values of h and k. [3] (d) Write down the numerical value of MT:TR. [1]

Answer this when you sit the paper.

Question 101

[2 marks]Fractions, Decimals & Percentages
Evaluate 1,36 - 7/8, giving the answer as a decimal.

Answer this when you sit the paper.

Question 102

[2 marks]Measures & Mensuration

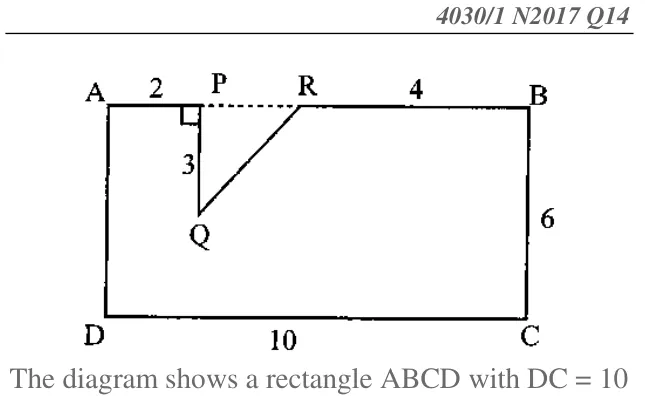

The diagram shows a rectangle ABCD with DC = 10 cm and BC = 6 cm. Right-angled triangle PQR has been cut off, such that AP = 2 cm, PQ = 3 cm and BR = 4 cm. Calculate the perimeter of the shape APQRBCD.

Answer this when you sit the paper.

Question 103

[3 marks]Factorisation, H.C.F & L.C.M
(i) Factorise completely x^2 - 6x. (ii) Factorise completely (m - 1)^2 - 9.

Answer this when you sit the paper.

Question 104

[2 marks]Algebraic Fractions
Express 3/(v - 3) - 2/(v - 2) as a single fraction in its simplest form.

Answer this when you sit the paper.

Question 201

[5 marks]Polygons, Symmetry & Circles
(i) Three interior angles of a hexagon are each x° and the remaining three interior angles are each y°. Form an equation in x and y that satisfies this condition. [2] (ii) Given also that 5x = 7y, use this equation and the equation in (i) to find the values of x and y. [3]

Answer this when you sit the paper.

Question 203

[3 marks]Change of Subject of Formula
Given that ax = sqrt(b^2 - x^2), express x in terms of a and b.

Answer this when you sit the paper.

Question 301

[5 marks]Matrices
It is given that matrix P = (3 -2 1; 0 -1 4) and matrix Q = (-2 3; -4 5). (i) State the order of matrix P. (ii) 1. Calculate Q^2. 2. Calculate Q^-1, the inverse of matrix Q.

Answer this when you sit the paper.

Question 302

[3 marks]Variation
M varies directly as the square of r and inversely as the square root of h. (i) Express M in terms of r, h and a constant k. [1] (ii) Find the value of k when r = h = 4 and M = 12. [2]

Answer this when you sit the paper.

Question 402

[5 marks]Co-ordinate Geometry
4y - 3x = -8 is an equation of a straight line. (i) Find the gradient of the line. (ii) Find the coordinates of the point where the straight line crosses the y-axis. (iii) Find the equation of a line parallel to 4y - 3x = -8 passing through the point (0; 3).

Answer this when you sit the paper.

Question 403

[3 marks]Similarity & Congruency
A jug 20 cm high has a capacity of 125 ml when full. Calculate the height of a similar jug which has a capacity of 1 litre when full.

Answer this when you sit the paper.

Question 501

[4 marks]Consumer Arithmetic
A trader made a profit of 16% on the cost price by selling a handset for $29,00. (i) Calculate the cost price of the handset. [2] (ii) Calculate the selling price of the handset if a loss of 30% was realized. [2]

Answer this when you sit the paper.

Question 503

[4 marks]Prime Numbers, Sequences & Types of Numbers

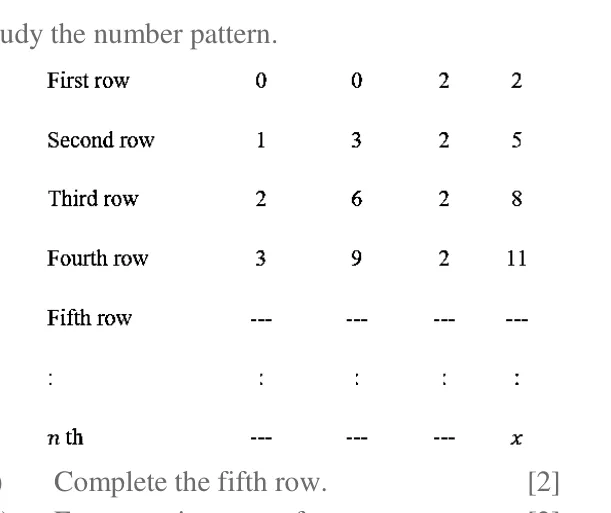

Study the number pattern. First row: 0, 0, 2, 2. Second row: 1, 3, 2, 5. Third row: 2, 6, 2, 8. Fourth row: 3, 9, 2, 11. Fifth row: ---, ---, ---, ---. n th row: ---, ---, ---, x. (i) Complete the fifth row. [2] (ii) Express x in terms of n. [2]

Answer this when you sit the paper.

Question 702

[2 marks]Ratios, Rates & Proportions
Three people can complete a certain task in 6 days. Calculate the number of people, working at the same rate, who can complete the same task in 9 days.

Answer this when you sit the paper.

Question 801

[2 marks]Inequalities & Linear Programming
Mr. Moyo wants to plant mango and guava trees in his plot. He wants at least 4 mango trees and at least 2 guava trees. Let x be the number of mango trees and y be the number of guava trees. Form two inequalities that satisfy the given conditions.

Answer this when you sit the paper.

Question 802

[1 marks]Inequalities & Linear Programming
There is enough space in his plot for not more than 9 trees. Write down an inequality in x and y that satisfies the given condition, where x is the number of mango trees and y the number of guava trees.

Answer this when you sit the paper.

Question 803

[2 marks]Inequalities & Linear Programming
Mango trees cost $14,00 each and guava trees cost $24,00 each. Mr. Moyo has $168,00 for the purchase of trees. Form an inequality in x and y that satisfies this condition and show that it reduces to 7x + 12y <= 84.

Answer this when you sit the paper.

Question 804

[4 marks]Inequalities & Linear Programming
State the coordinates of the point where the line 7x + 12y = 84 crosses the y axis.

Answer this when you sit the paper.

Question 805

[1 marks]Inequalities & Linear Programming
The lines x + y = 9 and y = 2 are drawn on the same axes. Calculate the coordinates of the point where they cross.

Answer this when you sit the paper.

Question 806

[2 marks]Inequalities & Linear Programming
Use the graph to find the number of trees that will use the greatest amount of money, where mango trees cost $14,00 each and guava trees cost $24,00 each.

Answer this when you sit the paper.

Question 901

[1 marks]Statistics & Probability

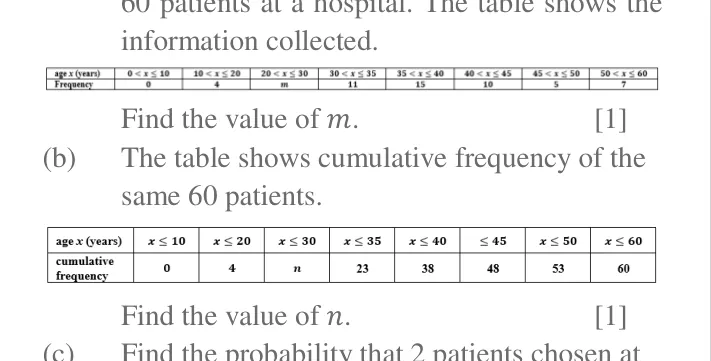

A survey was carried out to find the ages of 60 patients at a hospital. The table shows the information collected.
age x (years): 0 < x <= 10, 10 < x <= 20, 20 < x <= 30, 30 < x <= 35, 35 < x <= 40, 40 < x <= 45, 45 < x <= 50, 50 < x <= 60
Frequency: 0, 4, m, 11, 15, 10, 5, 7
Find the value of m.

Answer this when you sit the paper.

Question 902

[1 marks]Statistics & Probability
A survey was carried out to find the ages of 60 patients at a hospital. The table shows cumulative frequency of the same 60 patients.
age x (years): x <= 10, x <= 20, x <= 30, x <= 35, x <= 40, <= 45, x <= 50, x <= 60
cumulative frequency: 0, 4, n, 23, 38, 48, 53, 60
Find the value of n.

Answer this when you sit the paper.

Question 903

[2 marks]Statistics & Probability
A survey was carried out to find the ages of 60 patients at a hospital. The cumulative frequencies are:
age x (years): x <= 10, x <= 20, x <= 30, x <= 35, x <= 40, <= 45, x <= 50, x <= 60
cumulative frequency: 0, 4, 12, 23, 38, 48, 53, 60
Find the probability that 2 patients chosen at random will both be less than or equal to 45 years in age.

Answer this when you sit the paper.

Question 904

[4 marks]Statistics & Probability
A survey found the ages of 60 patients at a hospital. The cumulative frequencies are:
age x (years): x <= 10, x <= 20, x <= 30, x <= 35, x <= 40, x <= 45, x <= 50, x <= 60
cumulative frequency: 0, 4, 12, 23, 38, 48, 53, 60
Find the number of patients who were more than 45 years old.

Answer this when you sit the paper.

Question 1001

[6 marks]Measures & Mensuration

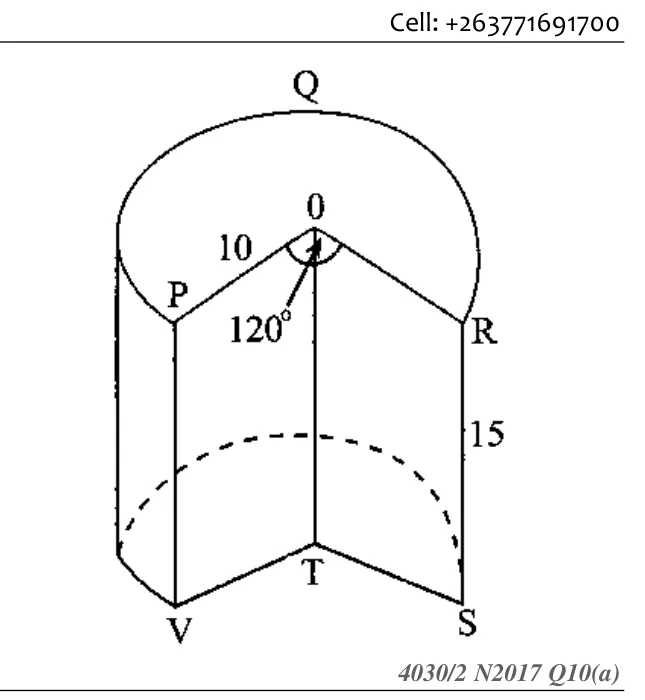

The diagram shows the cross-section OPQR of a cylindrical wooden block centre O that was cut with PORSTV removed, such that angle POR = 120 degrees. The radius, OP, is 10 cm and the block is 15 cm high. [Take pi to be 22/7.] (i) Calculate the area of the cross-section OPQR. (ii) Calculate the volume of the block. (iii) Calculate the curved surface area of the block.

Answer this when you sit the paper.

Question 1002

[4 marks]Consumer Arithmetic
A Zimbabwean motorist travels to Botswana on holiday. The motorist travels a total distance of 3 600 km in Botswana. The motorist's car consumes petrol at a rate of 9 km per litre of petrol. (i) Calculate the amount of petrol used in Botswana. [2] (ii) Petrol costs 6,5 pula per litre in Botswana. Calculate the total cost of petrol used in US dollars if the exchange rate was US$1 = 8 pula. [2]

Answer this when you sit the paper.

Question 1003

[2 marks]Functional Notation
Given that f(x) = 4 - x^2, calculate f(-1).

Answer this when you sit the paper.

Question 20201

[2 marks]Circle Geometry

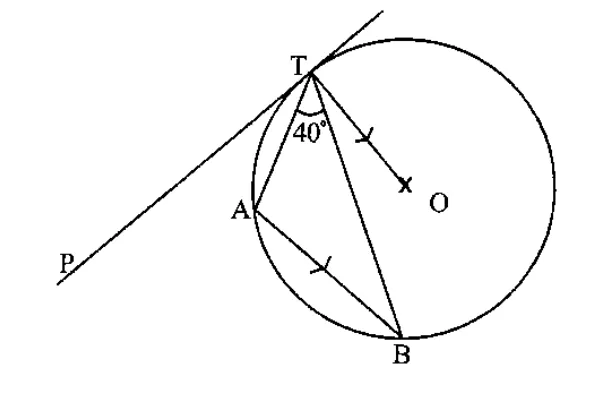

The diagram shows points A, B and T on the circumference of a circle centre O. PT is a tangent to the circle at T. AB is parallel to TO and angle ATB = 40. Name two angles equal to angle ABT.

Answer this when you sit the paper.

Question 20202

[2 marks]Circle Geometry
The diagram shows points A, B and T on the circumference of a circle centre O. PT is a tangent to the circle at T. AB is parallel to TO and angle ATB = 40. Calculate angle BAT.

Answer this when you sit the paper.

Question 30301

[1 marks]Geometrical Transformation
ABC is a scalene triangle with angle ABC = 90 degrees. Write down the special name of a quadrilateral that is formed by triangle ABC and its image after a reflection in the line AC.

Answer this when you sit the paper.

Question 30302

[1 marks]Geometrical Transformation
ABC is a scalene triangle with angle ABC = 90 degrees. Write down the special name of a quadrilateral that is formed by triangle ABC and its image after a rotation through 180 degrees about the mid-point of AC.

Answer this when you sit the paper.

Question 40101

[1 marks]Sets

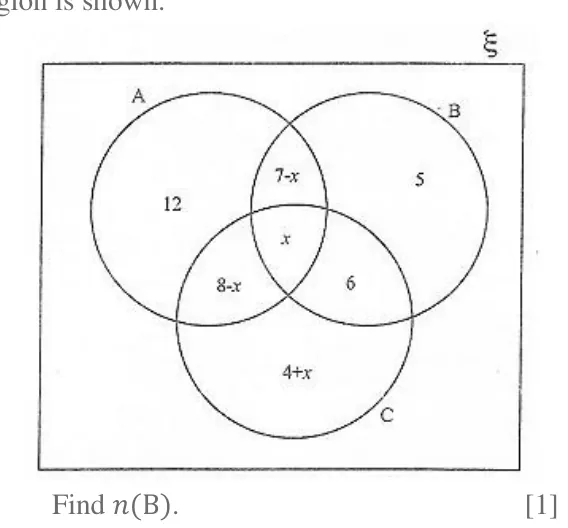

The Venn diagram shows the universal set xi and its subsets A, B and C. The number of elements in each region is 12 in A only, 7 - x in A intersect B only, 5 in B only, x in the region common to all three, 8 - x in A intersect C only, 6 in B intersect C only and 4 + x in C only. Find n(B).

Answer this when you sit the paper.

Question 40102

[1 marks]Sets
The Venn diagram shows subsets A, B and C with 12 in A only, 7 - x in A intersect B only, 5 in B only, x common to all three, 8 - x in A intersect C only, 6 in B intersect C only and 4 + x in C only. Find n(A' intersect B intersect C), where A' is the complement of set A.

Answer this when you sit the paper.

Question 40103

[2 marks]Sets
The Venn diagram shows subsets A, B and C with 12 in A only, 7 - x in A intersect B only, x common to all three and 8 - x in A intersect C only. Find the value of x given that n(A) = 23.

Answer this when you sit the paper.

Question 50201

[2 marks]Logarithms
Solve the equation log_x 81 = 2.

Answer this when you sit the paper.

Question 50202

[2 marks]Ordinary & Standard Form
Simplify (3 x 10^2) - (2 x 10^-1), giving the answer in standard form.

Answer this when you sit the paper.

Question 70101

[5 marks]Circle Geometry

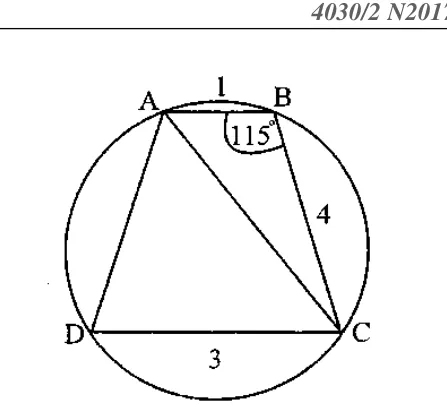

In the diagram ABCD is a cyclic quadrilateral in which AB = 1 cm, BC = 4 cm, CD = 3 cm and angle ABC = 115. Calculate AC.

Answer this when you sit the paper.

Question 70102

[5 marks]Circle Geometry
In the diagram ABCD is a cyclic quadrilateral in which AB = 1 cm, BC = 4 cm, CD = 3 cm and angle ABC = 115. Calculate angle DAC.

Answer this when you sit the paper.

Question 90501

[2 marks]Statistics & Probability
A survey was carried out to find the ages of 60 patients at a hospital. The cumulative frequencies are:
age x (years): x <= 10, x <= 20, x <= 30, x <= 35, x <= 40, <= 45, x <= 50, x <= 60
cumulative frequency: 0, 4, 12, 23, 38, 48, 53, 60
Use the graph to estimate the median.

Answer this when you sit the paper.

Question 90502

[2 marks]Statistics & Probability
A survey was carried out to find the ages of 60 patients at a hospital. The cumulative frequencies are:
age x (years): x <= 10, x <= 20, x <= 30, x <= 35, x <= 40, <= 45, x <= 50, x <= 60
cumulative frequency: 0, 4, 12, 23, 38, 48, 53, 60
Use the graph to estimate the upper quartile.

Answer this when you sit the paper.
