ZIMSEC O Level Mathematics Paper 2 November 2016 (topical set)

Question 5

[10 marks]Constructions & Loci

Use ruler and compasses only for all constructions and show clearly all the construction lines and arcs. (a) On a single diagram, construct (i) triangle PQR in which PR = 9 cm, PQ = 7 cm and angle QPR = 45 degrees, [3] (ii) the locus of points which are equidistant from PQ and PR, [2] (iii) the locus of points which are equidistant from P and Q, [2] (iv) mark and label clearly, the point X which is equidistant from PQ and PR and is also equidistant from P and R. [1] (b) Measure and write down (i) the length of XR, [1] (ii) angle PRQ. [1]

Answer this when you sit the paper.

Question 7

[12 marks]Measures & Mensuration

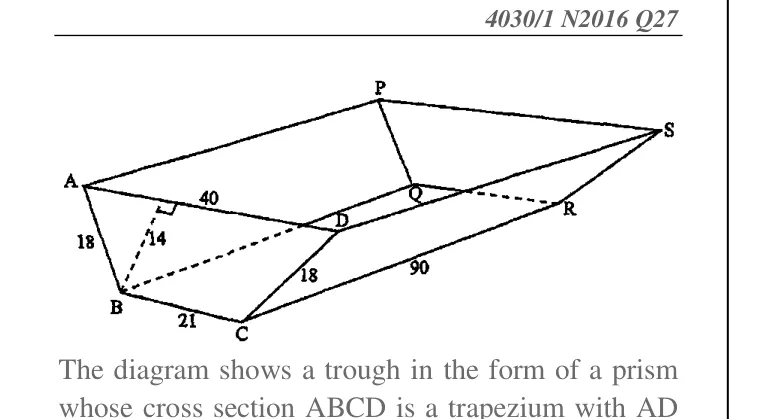

The diagram shows a trough in the form of a prism whose cross section ABCD is a trapezium with AD parallel to BC and the measurements are in centimetres. AD = 40, BC = 21, AB = 18, the perpendicular height from BC to AD is 14 and the trough is 90 long. (a)(i) Calculate the area of the cross-section ABCD of the trough. (ii) Calculate the capacity of the trough when full. (b) The inside of the trough is to be painted. One litre of the paint covers an area of 1 496 cm^2. (i) Calculate the area of the trough to be painted. (ii) Calculate the number of litres of paint needed to paint the inside of the trough to the nearest litre. (iii) Calculate the cost of the paint if one litre of the paint costs $6,30.

Answer this when you sit the paper.

Question 101

[2 marks]Algebraic Expressions

Remove the brackets and simplify (a - b)(2a - b).

Answer this when you sit the paper.

Question 102

[3 marks]Fractions, Decimals & Percentages

Simplify 2 1/4 ÷ (1 1/4 + 3 1/3).

Answer this when you sit the paper.

Question 103

[4 marks]Algebraic Fractions

Express as a single fraction in its simplest form (2x + 9)/7 - (x + 1)/28.

Answer this when you sit the paper.

Question 104

[2 marks]Consumer Arithmetic

A trader sold a bicycle for $84 and made a profit of 40% on the cost price. Calculate the cost price of the bicycle. [2]

Answer this when you sit the paper.

Question 201

[5 marks]Matrices

It is given that M = (3 9; 2 7) and N = (5 -1; 4 -6). (i) Find M^-1, the inverse of matrix M. (ii) Find matrix P such that 2P + N = (7 3; 4 -4).

Answer this when you sit the paper.

Question 202

[3 marks]Change of Subject of Formula

Given that x = y + sqrt(m + x^2), make m the subject of the formula.

Answer this when you sit the paper.

Question 203

[3 marks]Ratios, Rates & Proportions

If Mrs. Pindo pays with a R100 note for an item worth US$2.20, she gets US$10.40 change. Calculate the exchange rate in the form R n : US$ where n is correct to 2 decimal places.

Answer this when you sit the paper.

Question 301

[4 marks]Points, Lines & Angles

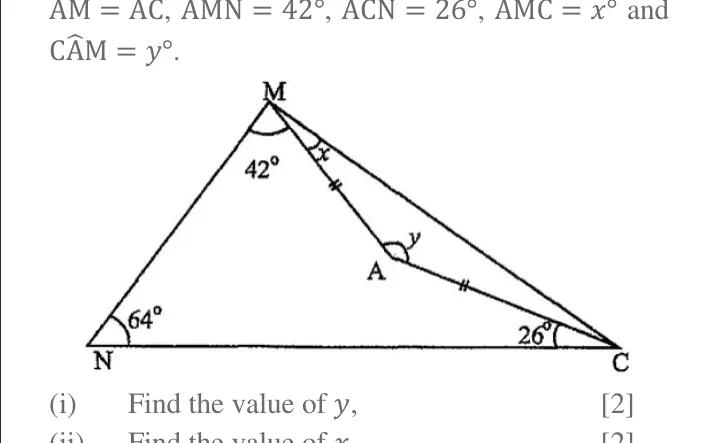

In the diagram, MNC is a triangle in which angle MNC = 64°. A is a point inside the triangle such that AM = AC, angle AMN = 42°, angle ACN = 26°, angle AMC = x° and angle CAM = y°. (i) Find the value of y, [2] (ii) Find the value of x. [2]

Answer this when you sit the paper.

Question 302

[6 marks]Vector Geometry

Points P(-3 ; 1), Q(3 ; 4) and R are on a Cartesian plane. (i) Find PQ. [1] (ii) If PR = (2; -6), find the coordinates of R. [2] (iii) Find the equation of the line PQ. [3]

Answer this when you sit the paper.

Question 401

[3 marks]Linear Equations

Solve the equation 3/(x + 7) - 1/(x + 2) = 0.

Answer this when you sit the paper.

Question 601

[2 marks]Trigonometry, Bearing & Distances

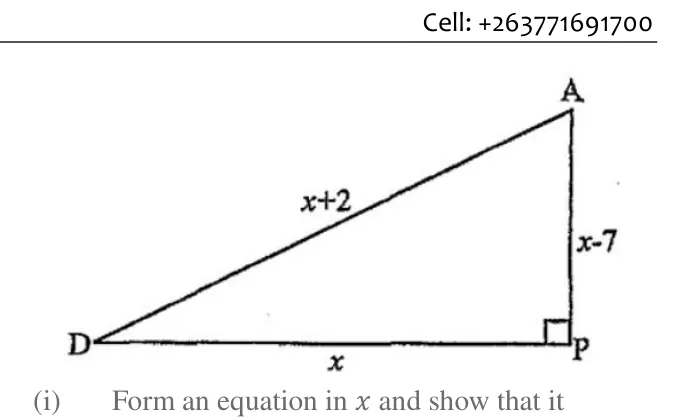

In the diagram, triangle ADP is right-angled at P. AP = (x - 7) cm, AD = (x + 2) cm and DP = x cm. Form an equation in x and show that it reduces to x^2 - 18x + 45 = 0.

Answer this when you sit the paper.

Question 602

[3 marks]Trigonometry, Bearing & Distances

Solve the equation x^2 - 18x + 45 = 0.

Answer this when you sit the paper.

Question 603

[1 marks]Trigonometry, Bearing & Distances

In the diagram, triangle ADP is right-angled at P. AP = (x - 7) cm, AD = (x + 2) cm and DP = x cm, where x satisfies x^2 - 18x + 45 = 0. Hence write down the length of AP.

Answer this when you sit the paper.

Question 802

[1 marks]Statistics & Probability

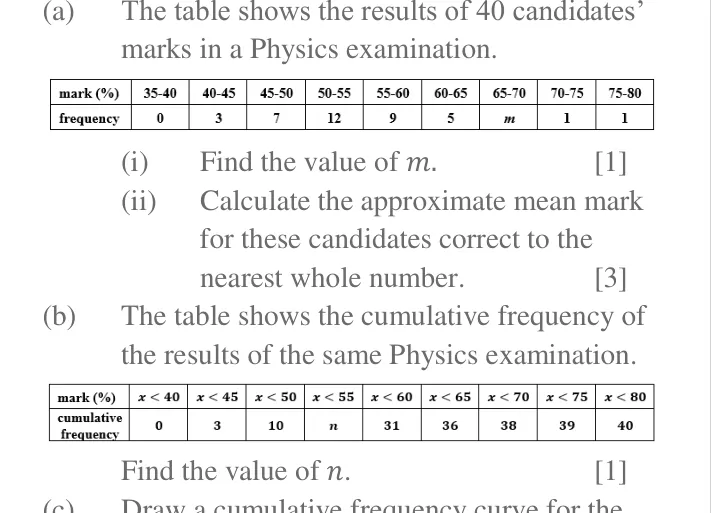

The table shows the cumulative frequency of the results of a Physics examination taken by 40 candidates.
mark (%): x < 40, x < 45, x < 50, x < 55, x < 60, x < 65, x < 70, x < 75, x < 80
cumulative frequency: 0, 3, 10, n, 31, 36, 38, 39, 40
Find the value of n.

Answer this when you sit the paper.

Question 803

[4 marks]Statistics & Probability

The cumulative frequency of the results of a Physics examination taken by 40 candidates is:
mark (%): x < 40, x < 45, x < 50, x < 55, x < 60, x < 65, x < 70, x < 75, x < 80
cumulative frequency: 0, 3, 10, 22, 31, 36, 38, 39, 40
Find the number of candidates who scored 60 marks or more.

Answer this when you sit the paper.

Question 901

[7 marks]Measures & Mensuration

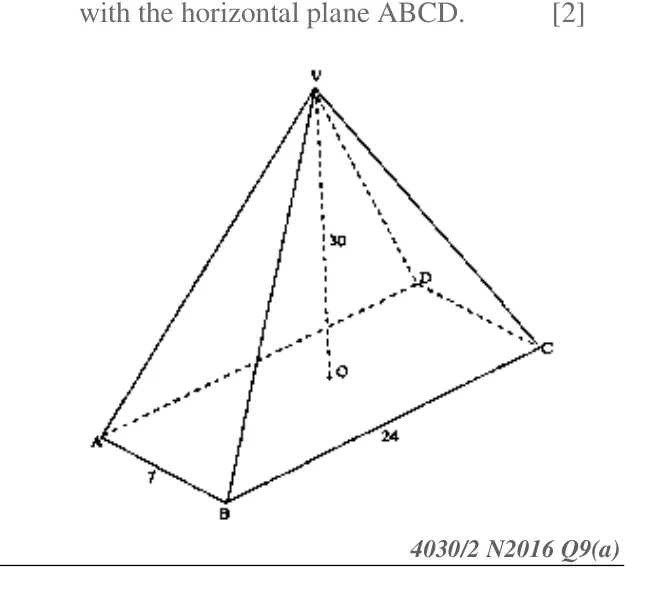

In the diagram, VABCD is a right pyramid on a rectangular base ABCD. O is the centre of the rectangle ABCD with AB = 7 cm, BC = 24 cm and VO = 30 cm. (i) Calculate the length of the diagonal AC. (ii) Calculate the length of the edge VA. (iii) Calculate the angle which the edge VA makes with the horizontal plane ABCD.

Answer this when you sit the paper.

Question 902

[5 marks]Variation

A workman's weekly income is made up of a fixed weekly wage and overtime wage which varies directly as the number of hours of overtime that he works. If he works 6 hours overtime, his weekly income is $96. If he works 8 hours overtime, his weekly income is $103. Find the workman's fixed weekly wage. [5]

Answer this when you sit the paper.

Question 1001

[1 marks]Functional Graphs

The table of values is for the function y = 5 - 3x - 2x^2, with x = -3, -2, -1, 0, 1, 2, 3 giving y = p, 3, 6, 5, 0, -9, -22. Find the value of p.

Answer this when you sit the paper.

Question 1101

[5 marks]Trigonometry, Bearing & Distances

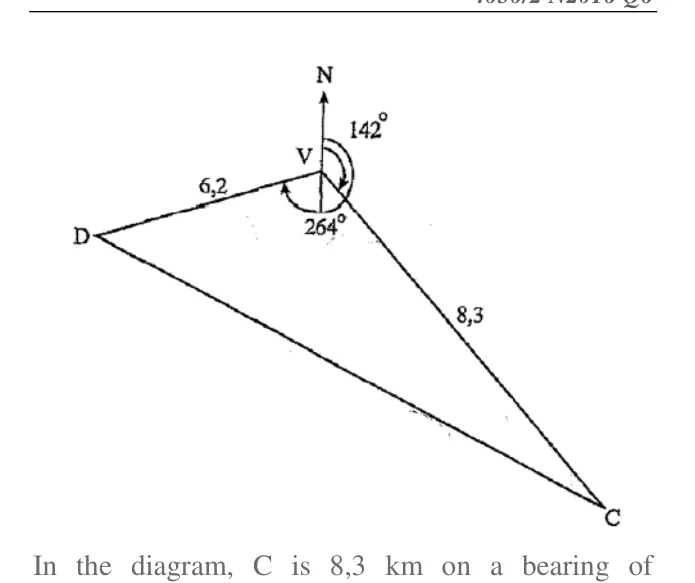

In the diagram, C is 8,3 km on a bearing of 142 degrees from V. D is 6,2 km on a bearing of 264 degrees from V. Calculate the length of CD.

Answer this when you sit the paper.

Question 1102

[5 marks]Trigonometry, Bearing & Distances

In the diagram, C is 8,3 km on a bearing of 142 degrees from V. D is 6,2 km on a bearing of 264 degrees from V. Calculate the bearing of D from C, correct to the nearest degree.

Answer this when you sit the paper.

Question 1103

[2 marks]Trigonometry, Bearing & Distances

In the diagram, C is 8,3 km on a bearing of 142 degrees from V. D is 6,2 km on a bearing of 264 degrees from V. Calculate the distance that D is to the west of C.

Answer this when you sit the paper.

Question 1202

[2 marks]Geometrical Transformation

Triangle P has vertices at (1; 2), (3; 2) and (5; 4) and triangle V has vertices at (-1; -2), (-3; -2) and (-5; -4). Describe fully the single transformation which maps triangle P onto triangle V.

Answer this when you sit the paper.

Question 40201

[1 marks]Circle Geometry

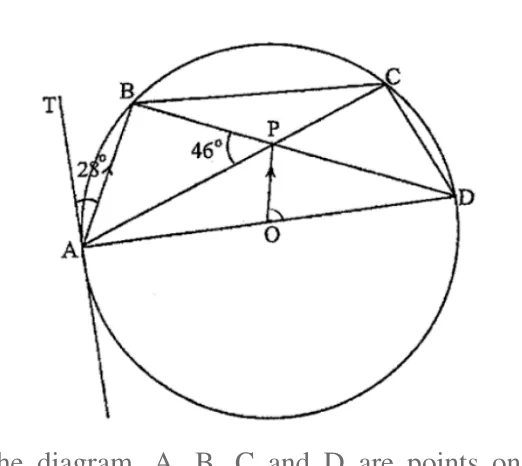

In the diagram, A, B, C and D are points on the circumference of a circle centre O. P is a point on BD such that OP is parallel to AB and APC is a straight line. TA is a tangent to the circle at A where angle BAT = 28 and angle APB = 46. Calculate angle ADB.

Answer this when you sit the paper.

Question 40202

[2 marks]Circle Geometry

In the diagram, A, B, C and D are points on the circumference of a circle centre O, and AOD is a straight line. P is a point on BD such that OP is parallel to AB and APC is a straight line. TA is a tangent to the circle at A where angle BAT = 28 and angle APB = 46. Calculate angle BAP.

Answer this when you sit the paper.

Question 40203

[2 marks]Circle Geometry

Answer this when you sit the paper.

Question 40204

[2 marks]Circle Geometry

Answer this when you sit the paper.

Question 60201

[2 marks]Inequalities & Linear Programming

The unshaded region R of a graph is bounded by four straight lines:

x=1

y=3

, the line through

(0; 15)

and

(5; 0)

, and the line through

(2; 2)

and

(5; 10)

. The point

(2; 5)

lies inside R. Write down the inequality that the line through

(0; 15)

and

(5; 0)

contributes, in the form

3x+y\ldots

Answer this when you sit the paper.

Question 60202

[2 marks]Inequalities & Linear Programming

A region R is defined by

x\geq1

y\geq3

3x+y\leq15

and

3y\geq8x-10

. Find the greatest possible value of

x+y

, given that

x

and

y

are integers.

Answer this when you sit the paper.

Question 80101

[1 marks]Statistics & Probability

The table shows the results of 40 candidates' marks in a Physics examination.
mark (%): 35-40, 40-45, 45-50, 50-55, 55-60, 60-65, 65-70, 70-75, 75-80
frequency: 0, 3, 7, 12, 9, 5, m, 1, 1
Find the value of m.

Answer this when you sit the paper.

Question 80102

[3 marks]Statistics & Probability

The table shows the results of 40 candidates' marks in a Physics examination.
mark (%): 35-40, 40-45, 45-50, 50-55, 55-60, 60-65, 65-70, 70-75, 75-80
frequency: 0, 3, 7, 12, 9, 5, 2, 1, 1
Calculate the approximate mean mark for these candidates correct to the nearest whole number.

Answer this when you sit the paper.

Question 80401

[2 marks]Statistics & Probability

Answer this when you sit the paper.

Question 80402

[2 marks]Statistics & Probability

The cumulative frequency of the results of a Physics examination taken by 40 candidates is:
mark (%): x < 40, x < 45, x < 50, x < 55, x < 60, x < 65, x < 70, x < 75, x < 80
cumulative frequency: 0, 3, 10, 22, 31, 36, 38, 39, 40
Use the graph to find the number of candidates who passed the examination if the pass mark was 49%.

Answer this when you sit the paper.

Question 100201

[4 marks]Functional Graphs

State the coordinates of the point where the graph of y = 5 - 3x - 2x^2 crosses the y axis.

Answer this when you sit the paper.

Question 100202

[1 marks]Functional Graphs

State the coordinates of the point where the line y = 2x - 3 crosses the x axis.

Answer this when you sit the paper.

Question 100301

[2 marks]Functional Graphs

Use the graph to find the gradient of the curve y = 5 - 3x - 2x^2 when x = -2.

Answer this when you sit the paper.

Question 100302

[2 marks]Functional Graphs

Use the graph to solve the equation 5 - 3x - 2x^2 = 0.

Answer this when you sit the paper.

Question 100303

[2 marks]Functional Graphs

Use the graph to solve the equation 5 - 3x - 2x^2 = 2x - 3.

Answer this when you sit the paper.

Question 120101

[1 marks]Geometrical Transformation

Using a scale of 2 cm to represent 2 units on both axes for -8 <= x <= 10 and -8 <= y <= 8, triangle P has vertices at (1; 2), (3; 2) and (5; 4). Draw and label clearly the triangle P.

Answer this when you sit the paper.

Question 120102

[2 marks]Geometrical Transformation

Triangle P has vertices at (1; 2), (3; 2) and (5; 4). Triangle Q is the image of triangle P under a shear of factor -2 with the x-axis invariant. Draw and label clearly the triangle Q.

Answer this when you sit the paper.

Question 120103

[1 marks]Geometrical Transformation

Triangle V has vertices at (-1; -2), (-3; -2) and (-5; -4). Draw and label clearly the triangle V.

Answer this when you sit the paper.

Question 120104

[3 marks]Geometrical Transformation

Triangle P has vertices at (1; 2), (3; 2) and (5; 4). Triangle W is the image of triangle P under a reflection in the line y = x - 2. Draw and label clearly the line y = x - 2 and triangle W.

Answer this when you sit the paper.

Question 120105

[3 marks]Geometrical Transformation

Triangle P has vertices at (1; 2), (3; 2) and (5; 4). Draw and label clearly, the triangle U, the image of triangle P under an enlargement of scale factor -2 with (4; 0) as centre.

Answer this when you sit the paper.
