ZIMSEC O Level · 4008/1 · N2012

Mathematics Paper 1 November 2012 (topical set)

Questions
49
Total marks
101
Time allowed
150 min
Syllabus code
4008/1

These questions are attributed to this sitting but were printed in a topical collection, so this is not the whole paper as it was sat.

Sit this paper online

Questions
49
Pass mark
30
Sit this paper

Answer every question in the printed order, get marked at the end, then see the answers.

The questions

Question 3

[3 marks]Vector Geometry

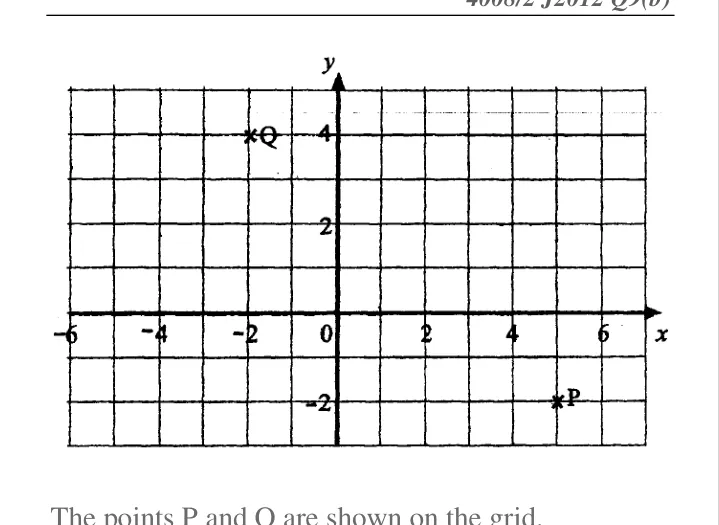

The points P and Q are shown on the grid, with Q at (-2, 4) and P in the fourth quadrant. (a)(i) Write down the co-ordinates of P. [1] (ii) Write PQ as a column vector. [1] (b) Given QM = (5; -3), draw QM on the grid. [1]

Answer this when you sit the paper.

Question 6

[3 marks]Change of Subject of Formula
Make y the subject of the formula x = sqrt(cy - d).

Answer this when you sit the paper.

Question 7

[3 marks]Simultaneous Equations
Solve the simultaneous equations: 4x + 9y = 33, 2x - 3y = -6.

Answer this when you sit the paper.

Question 8

[3 marks]Ratios, Rates & Proportions
Jojo works in the afternoons only for 5 days a week. He starts work at 1.15 pm and finishes at 7.45 pm. (a) Express 7.45 pm as time in the 24-hour notation. [1] (b) If he is paid $1,20 per hour, calculate his weekly wage. [2]

Answer this when you sit the paper.

Question 9

[3 marks]Factorisation, H.C.F & L.C.M
Factorise completely (i) 7pq - 14q, (ii) x^2 - 7x + 10.

Answer this when you sit the paper.

Question 12

[3 marks]Co-ordinate Geometry

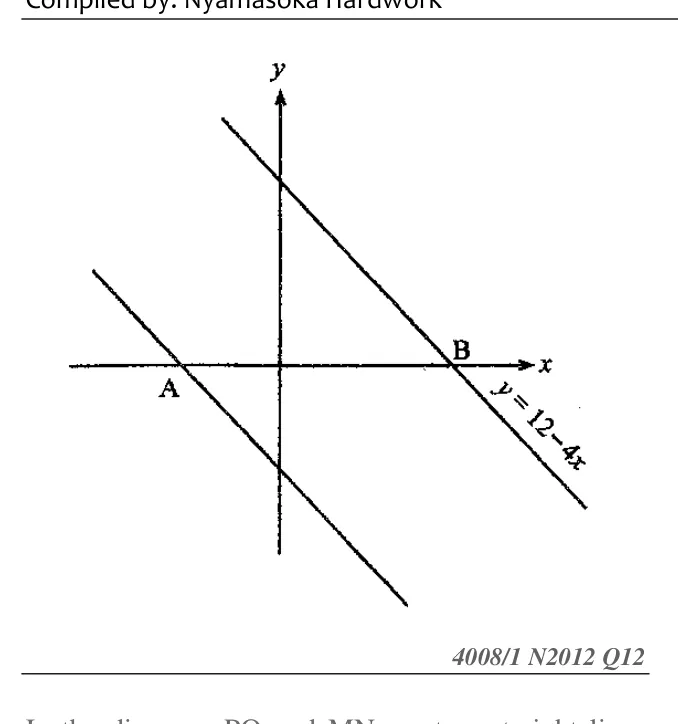

In the diagram, the line through A is parallel to the line y = 12 - 4x and the distance AB = 5 units. (a) Write down the x-coordinate of B. (b) Find the equation of the line through A parallel to the line y = 12 - 4x.

Answer this when you sit the paper.

Question 13

[3 marks]Number Bases
If 120_3 = 13_n + 10_n, find the value of n.

Answer this when you sit the paper.

Question 14

[3 marks]Laws of Indices
(a) Find the exact value of (4/3)^-2. (b) Simplify 3^(-1/2) x 9^(1/4).

Answer this when you sit the paper.

Question 15

[3 marks]Statistics & Probability
The mean of 10 numbers is 54,6. If the number (x + 6) is added to the 10 numbers, the mean becomes 51. Find the value of x.

Answer this when you sit the paper.

Question 16

[3 marks]Trigonometry, Bearing & Distances

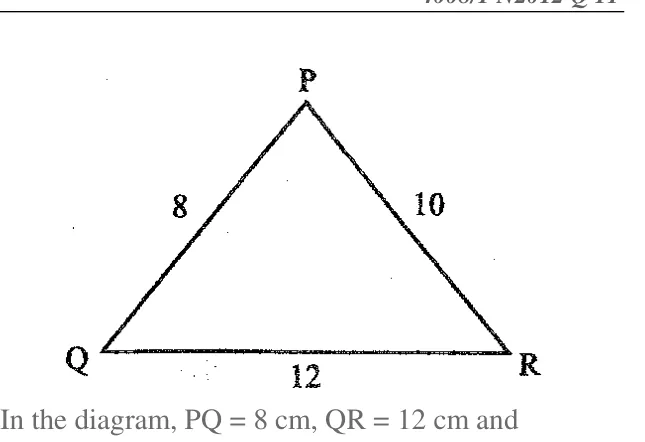

In the diagram, PQ = 8 cm, QR = 12 cm and PR = 10 cm. Express cos P as a common fraction.

Answer this when you sit the paper.

Question 17

[4 marks]Matrices
Given that C = (2 -3; 0 4) and D = (5 -2; -7 1), express as a single matrix (a) C - 2D, (b) D^2.

Answer this when you sit the paper.

Question 20

[4 marks]Probability
In this question give all probabilities as common fractions. Eight identical cards are numbered 2 ; 3 ; 5 ; 6 ; 7 ; 8 ; 8 and 9. (a) One of the cards is chosen at random. (i) Write down the number whose probability of being chosen is 1/4. [1] (ii) Find the probability of choosing a card with a prime number. [1] (b) Two of the eight cards are taken at random. Find the probability that the sum of the two numbers is 5. [2]

Answer this when you sit the paper.

Question 21

[4 marks]Constructions & Loci
A and B are two fixed points. Name the line which separates the points that are nearer to A from the points that are nearer to B.

Answer this when you sit the paper.

Question 22

[4 marks]Variation
F is inversely proportional to the square of d. (a) Express F in terms of d and a constant k. [1] (b) Find (i) the value of k when F = 60 and d = 3. [2] (ii) the value of F when d = 6. [1]

Answer this when you sit the paper.

Question 24

[5 marks]Polygons, Symmetry & Circles

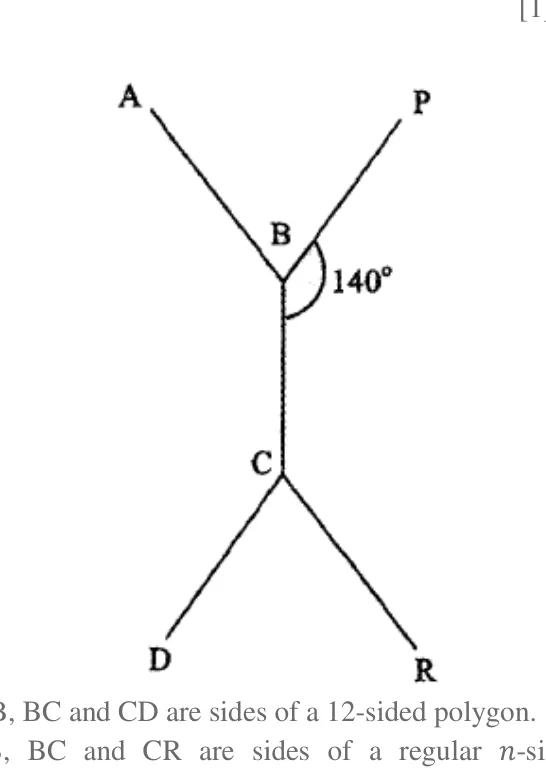

(a) Write down the special name of the regular polygon which has three lines of symmetry. [1] (b) AB, BC and CD are sides of a 12-sided polygon. PB, BC and CR are sides of a regular n-sided polygon and angle PBC = 140°. Find (i) the value of n, [2] (ii) the size of angle DCR. [2]

Answer this when you sit the paper.

Question 102

[1 marks]Ordinary & Standard Form
Express 754.96 in standard form.

Answer this when you sit the paper.

Question 202

[1 marks]Trigonometry, Bearing & Distances

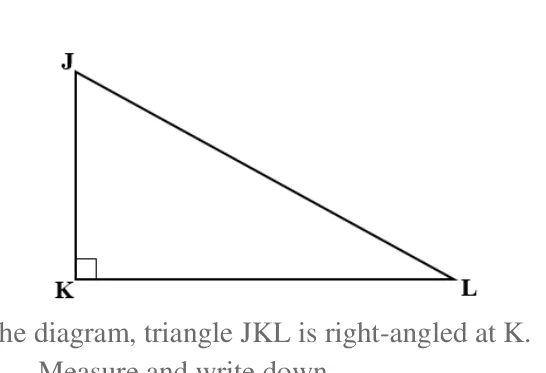

In the diagram, triangle JKL is right-angled at K. Write down the special name given to the side JL.

Answer this when you sit the paper.

Question 401

[1 marks]Fractions, Decimals & Percentages
Simplify 3 3/4 - 3 x 1/2.

Answer this when you sit the paper.

Question 402

[2 marks]Algebraic Expressions
Simplify 4x^2 - 3x(2x - 5).

Answer this when you sit the paper.

Question 501

[1 marks]Trigonometry, Bearing & Distances
Write down the supplement of 35 degrees.

Answer this when you sit the paper.

Question 502

[2 marks]Trigonometry, Bearing & Distances

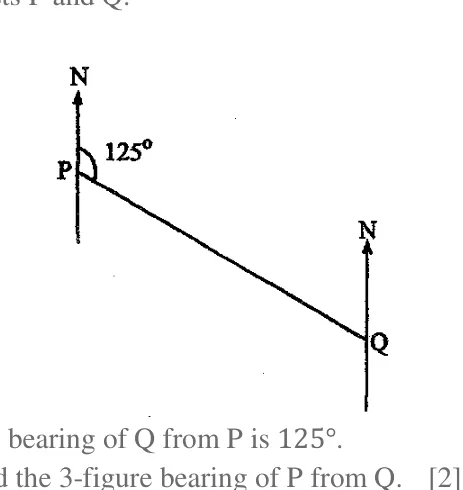

The diagram shows the positions of two TV masts P and Q. The bearing of Q from P is 125 degrees. Find the 3-figure bearing of P from Q.

Answer this when you sit the paper.

Question 801

[1 marks]Change of Units
Express 7.45 pm as time in the 24-hour notation.

Answer this when you sit the paper.

Question 1001

[2 marks]Inequalities
Solve the inequality 4 - 5x < 19.

Answer this when you sit the paper.

Question 1002

[1 marks]Inequalities
The solution of the inequality 4 - 5x < 19 is shown as a region on a Cartesian plane. Write down the equation of the vertical line that forms the boundary of that region.

Answer this when you sit the paper.

Question 1101

[1 marks]Trigonometry, Bearing & Distances

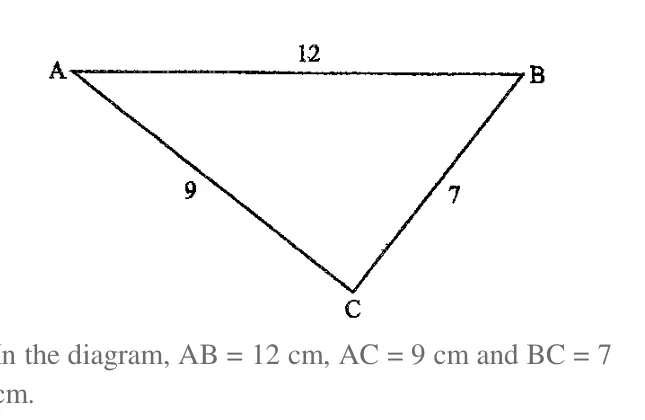

In the diagram, AB = 12 cm, AC = 9 cm and BC = 7 cm. Express the ratio AC : AB in its simplest form.

Answer this when you sit the paper.

Question 1102

[2 marks]Trigonometry, Bearing & Distances
In the diagram, AB = 12 cm, AC = 9 cm and BC = 7 cm. Find the area of triangle ABC. [sin A = 0,58; cos A = 0,81; tan A = 0,71]

Answer this when you sit the paper.

Question 1801

[2 marks]Logarithms
Given that log 3 = 0.477 and log 5 = 0.699, find log 45.

Answer this when you sit the paper.

Question 1802

[2 marks]Sets
Two sets A and B are such that A intersect B is not empty, A union B = xi, n(A) = 15, n(B) = 25 and n(A union B) = 30. Find n(A intersect B).

Answer this when you sit the paper.

Question 1901

[1 marks]Scales & Simple Map Problems
Express a scale of 2 cm to 5 m in the form 1 : n, where n is a whole number.

Answer this when you sit the paper.

Question 2301

[1 marks]Circle Geometry

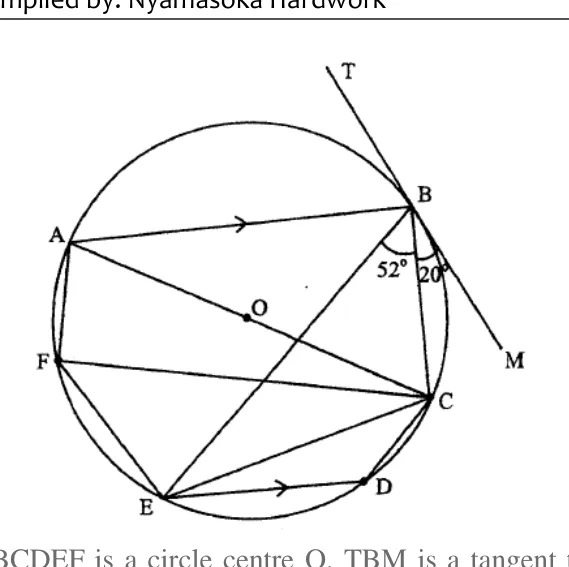

ABCDEF is a circle centre O. TBM is a tangent to the circle at B. angle EBC = 52, angle CBM = 20 and AB is parallel to ED. Find angle EFC.

Answer this when you sit the paper.

Question 2302

[1 marks]Circle Geometry
ABCDEF is a circle centre O. TBM is a tangent to the circle at B. angle EBC = 52, angle CBM = 20 and AB is parallel to ED. Find angle BEC.

Answer this when you sit the paper.

Question 2303

[1 marks]Circle Geometry
ABCDEF is a circle centre O. TBM is a tangent to the circle at B. angle EBC = 52, angle CBM = 20 and AB is parallel to ED. Find angle ABE.

Answer this when you sit the paper.

Question 2304

[2 marks]Circle Geometry
ABCDEF is a circle centre O. TBM is a tangent to the circle at B. angle EBC = 52, angle CBM = 20 and AB is parallel to ED. Find angle CED.

Answer this when you sit the paper.

Question 2502

[2 marks]Functional Notation
Given also that the line of symmetry of the graph of f(x) = x^2 + 3x + 2 is x = -1 1/2, find the coordinates of the turning point of this graph.

Answer this when you sit the paper.

Question 2601

[3 marks]Travel Graphs
A car decelerates uniformly from 18 m/s at 2 m/s^2 for 6 seconds. Calculate the distance the car travels during these 6 seconds.

Answer this when you sit the paper.

Question 2602

[1 marks]Travel Graphs

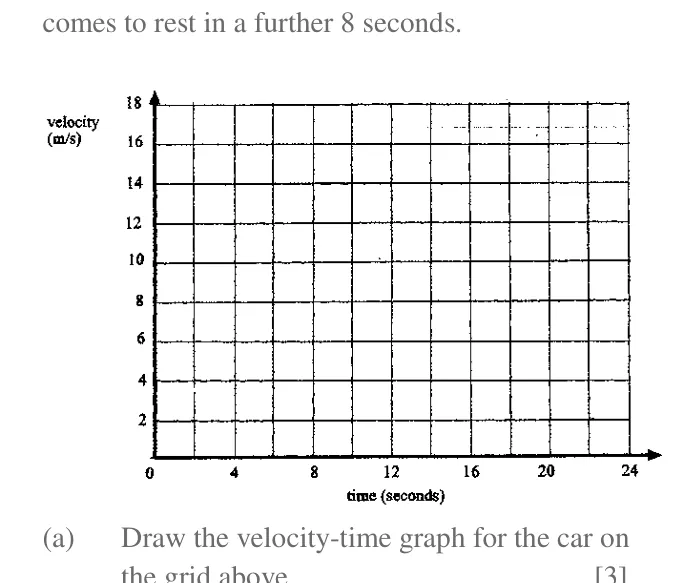

A car decelerates from 18 m/s at 2 m/s^2 for 6 seconds. It then travels with a constant velocity for 10 seconds before it decelerates at h m/s^2 until it comes to rest in a further 8 seconds. Calculate the distance the car travels at constant velocity.

Answer this when you sit the paper.

Question 2603

[1 marks]Travel Graphs
A car decelerates from 18 m/s at 2 m/s^2 for 6 seconds. It then travels with a constant velocity for 10 seconds before it decelerates at h m/s^2 until it comes to rest in a further 8 seconds. Find the value of h.

Answer this when you sit the paper.

Question 2701

[1 marks]Geometrical Transformation

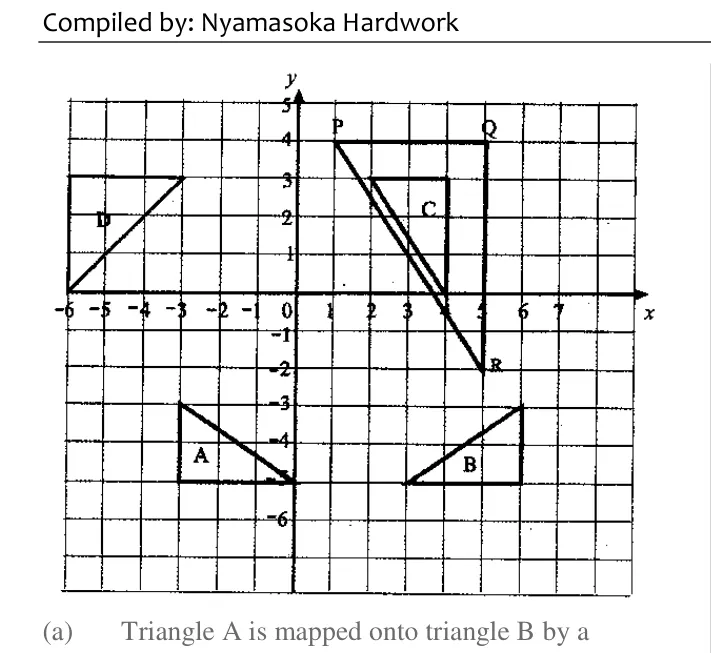

The diagram shows triangles A, B, C, D and PQR on the Cartesian plane. Triangle A has vertices (-3; -3), (-3; -5) and (0; -5). Triangle B has vertices (3; -5), (6; -5) and (6; -3). Triangle A is mapped onto triangle B by a reflection. Write down the equation of the line of reflection.

Answer this when you sit the paper.

Question 2702

[1 marks]Geometrical Transformation
The diagram shows triangles A, B, C, D and PQR on the Cartesian plane. Triangle B has vertices (3; -5), (6; -5) and (6; -3). Triangle C has vertices (2; 3), (4; 3) and (4; 0). Triangle B is mapped onto triangle C by an anticlockwise rotation through 90 degrees. Write down the coordinates of the centre of rotation.

Answer this when you sit the paper.

Question 10101

[1 marks]Approximations & Estimations
Express 754,96 correct to one decimal place.

Answer this when you sit the paper.

Question 10102

[1 marks]Approximations & Estimations
Express 754,96 correct to one significant figure.

Answer this when you sit the paper.

Question 20101

[1 marks]Trigonometry, Bearing & Distances
In the diagram, triangle JKL is right-angled at K. Measure and write down the length of KL correct to the nearest centimetre.

Answer this when you sit the paper.

Question 20102

[1 marks]Trigonometry, Bearing & Distances
In the diagram, triangle JKL is right-angled at K. Measure and write down the size of angle KJL correct to the nearest degree.

Answer this when you sit the paper.

Question 190201

[1 marks]Approximations & Estimations
The radius of a circle, r cm, is given as 11 cm correct to the nearest whole number. Find the limits between which r lies.

Answer this when you sit the paper.

Question 190202

[2 marks]Approximations & Estimations
The radius of a circle, r cm, is given as 11 cm correct to the nearest whole number. Find the least possible circumference of the circle in terms of pi.

Answer this when you sit the paper.

Question 250101

[1 marks]Functional Notation
It is given that f(x) = x^2 + 3x + 2. Find f(0).

Answer this when you sit the paper.

Question 250102

[2 marks]Functional Notation
It is given that f(x) = x^2 + 3x + 2. Find the values of x for which f(x) = 0.

Answer this when you sit the paper.

Question 270301

[3 marks]Geometrical Transformation
The diagram shows triangles A, B, C, D and PQR on the Cartesian plane. Triangle C has vertices (2; 3), (4; 3) and (4; 0). Triangle D has vertices (-6; 3), (-3; 3) and (-6; 0). Describe fully the single transformation which maps triangle C onto triangle D.

Answer this when you sit the paper.

Question 270302

[3 marks]Geometrical Transformation
The diagram shows triangles A, B, C, D and PQR on the Cartesian plane. Triangle PQR has vertices P(1; 4), Q(5; 4) and R(5; -2). Triangle C has vertices (2; 3), (4; 3) and (4; 0). Describe fully the single transformation which maps triangle PQR onto triangle C.

Answer this when you sit the paper.
