Danho
ZIMSEC O Level · 4030/1 · J2016

Mathematics Paper 1 June 2016 (topical set)

Questions
51
Total marks
101
Time allowed
150 min
Syllabus code
4030/1

These questions are attributed to this sitting but were printed in a topical collection, so this is not the whole paper as it was sat.

Sit this paper online

Questions
51
Pass mark
31
Sit this paper

Answer every question in the printed order, get marked at the end, then see the answers.

The questions

Question 1

[3 marks]Fractions, Decimals & Percentages
Evaluate (a) 1,4 + 0,04, (b) 5 1/4 ÷ 3 1/2.

Answer this when you sit the paper.

Question 5

[3 marks]Simultaneous Equations
Solve the simultaneous equations: 6y - 3x = 1, 3x + y = 13.

Answer this when you sit the paper.

Question 7

[3 marks]Number Bases
(a) Expand 1234_5 in powers of 5. [1] (b) Evaluate 1011_2 + 111_2, giving the answer in base 2. [2]

Answer this when you sit the paper.

Question 10

[3 marks]Change of Subject of Formula
Given that x = aq^2 + bq^2, express q in terms of a, b and x.

Answer this when you sit the paper.

Question 11

[3 marks]Variation
If V varies jointly as h and as the square of r, (a) write down the equation connecting V, r, h and a constant c. [1] (b) find c if V = 440, r = 2 and h = 35. [2]

Answer this when you sit the paper.

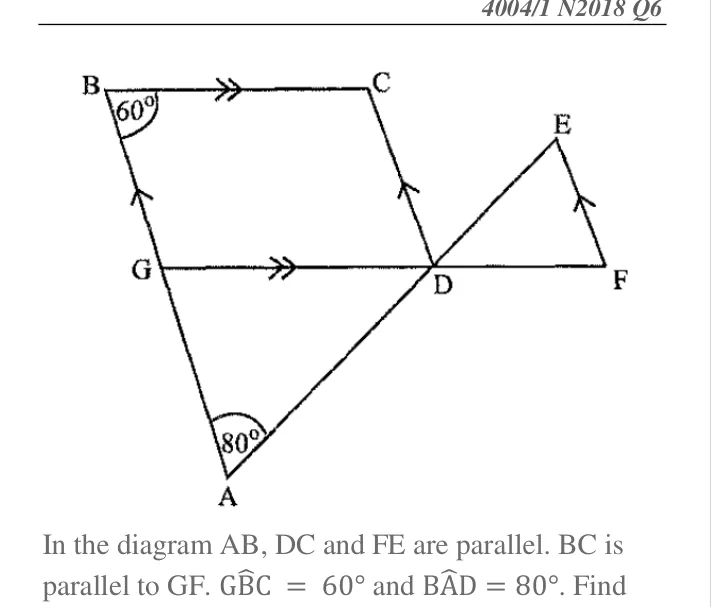

Question 13

[3 marks]Points, Lines & Angles
In the diagram AB, DC and FE are parallel. BC is parallel to GF. angle GBC = 60° and angle BAD = 80°. Find (a) angle BGD, [1] (b) angle ADG, [1] (c) angle DEF. [1]

Answer this when you sit the paper.

Question 14

[3 marks]Ordinary & Standard Form
Given that r = 9 x 10^6, evaluate, leaving the answers in standard form, (a) 2r, [1] (b) r^2, [1] (c) sqrt(r). [1]

Answer this when you sit the paper.

Question 16

[3 marks]Co-ordinate Geometry
The equation of a straight line, l, is 3x - 5y = 30. Find (a) the gradient of the line l, (b) the equation of a line parallel to line l passing through a point (-5; 3), in the form y = mx + c.

Answer this when you sit the paper.

Question 17

[3 marks]Scales & Simple Map Problems
The scale of a map is given as 1 : 250 000. Find (a) the distance on the ground, in km, represented by a length of 5 cm on the map, [1] (b) the actual area in km^2, represented by an area of 6 cm^2 on the map. [2]

Answer this when you sit the paper.

Question 18

[3 marks]Polygons, Symmetry & Circles
The size of each interior angle of a regular polygon is 135°. (a) Find (i) the size of each exterior angle, [1] (ii) the order of rotational symmetry of the regular polygon. [1] (b) State the special name of the regular polygon. [1]

Answer this when you sit the paper.

Question 19

[3 marks]Algebraic Fractions
Simplify 1/(a^2 - 3a + 2) divided by 1/(1 - a).

Answer this when you sit the paper.

Question 21

[4 marks]Matrices
The matrix A = (-2 14; 2 x) and |A| = -2. (a) Find the value of x. (b) Hence find A^-1.

Answer this when you sit the paper.

Question 22

[4 marks]Logarithms
(a) Given that log_b M = x, express M in terms of b and x. (b) Evaluate (i) log_4 (1/64), (ii) log 81 / log 27.

Answer this when you sit the paper.

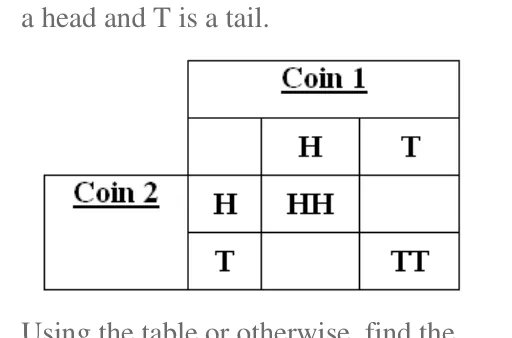

Question 23

[3 marks]Probability
Two unbiased coins, coin 1 and coin 2 are tossed and the outcomes recorded in a table. (a) Complete the outcome table given, where H is a head and T is a tail. The table has Coin 1 across the top (H, T) and Coin 2 down the side (H, T), with HH and TT already entered. (b) Using the table or otherwise, find the probability of getting (i) 2 heads, [1] (ii) different outcomes, [1] (iii) at least one tail. [1]

Answer this when you sit the paper.

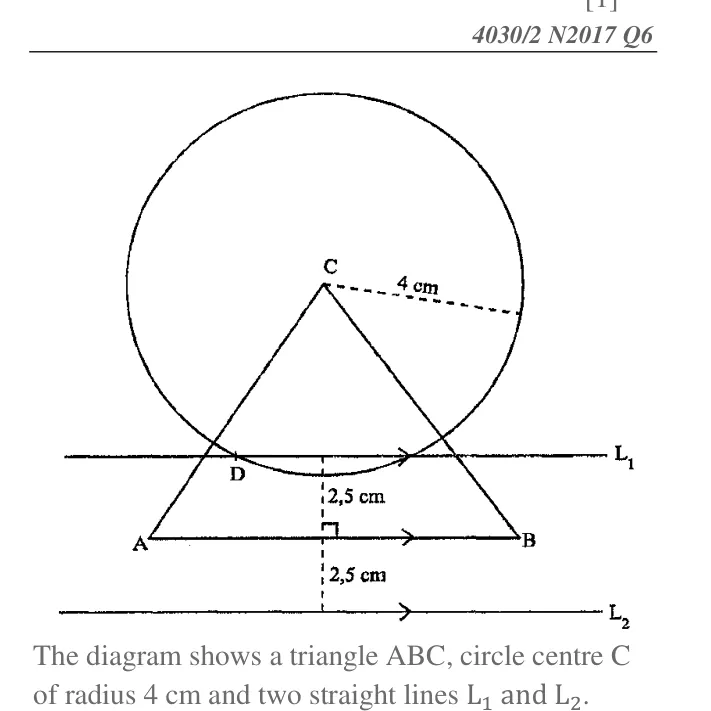

Question 26

[6 marks]Constructions & Loci
The diagram shows a triangle ABC, circle centre C of radius 4 cm and two straight lines L1 and L2. The lines L1 and L2 are each drawn parallel to AB, one on each side of it, at a distance of 2,5 cm from AB. (a) Describe fully the locus represented by the circle, centre C. [2] (b) Describe fully the locus represented by the lines L1 and L2. [2] (c) Describe the position of point D. [2]

Answer this when you sit the paper.

Question 202

[1 marks]Fractions, Decimals & Percentages
Express 7/30 as a recurring decimal fraction.

Answer this when you sit the paper.

Question 301

[1 marks]Prime Numbers, Sequences & Types of Numbers
It is given that 0 ; 1 ; 8 ; 27 ; ___ ; ... is a pattern. State the next term of the pattern.

Answer this when you sit the paper.

Question 302

[2 marks]Approximations & Estimations
A length h measured to 1 decimal place is given as 9,5 cm. State its limits.

Answer this when you sit the paper.

Question 401

[1 marks]Factorisation, H.C.F & L.C.M
Factorise completely x^2 - 1/36.

Answer this when you sit the paper.

Question 402

[2 marks]Algebraic Expressions
Remove brackets and simplify (4a + b)(5a - 3b).

Answer this when you sit the paper.

Question 601

[1 marks]Sets
It is given that xi = {0; 1; 2; 3; 4; 5; 6; 7; 8; 9}, A is a set of prime numbers and B is a set of factors of 12. List the elements of A.

Answer this when you sit the paper.

Question 602

[1 marks]Sets
It is given that xi = {0; 1; 2; 3; 4; 5; 6; 7; 8; 9}, A is a set of prime numbers and B is a set of factors of 12. List the elements of A intersect B.

Answer this when you sit the paper.

Question 603

[1 marks]Sets
It is given that xi = {0; 1; 2; 3; 4; 5; 6; 7; 8; 9}, A is a set of prime numbers and B is a set of factors of 12. Find n((A union B)').

Answer this when you sit the paper.

Question 801

[1 marks]Change of Units
Express 0,5 litres in cm^3.

Answer this when you sit the paper.

Question 802

[2 marks]Consumer Arithmetic
A woman earning $275 had her salary increased by 5%. Calculate her new salary. [2]

Answer this when you sit the paper.

Question 901

[1 marks]Functional Notation
If f(x) = 1/x^2, x is not 0, find f(-3).

Answer this when you sit the paper.

Question 902

[2 marks]Functional Notation
If f(x) = 1/x^2, x is not 0, find the values of x when f(x) = 1.

Answer this when you sit the paper.

Question 1201

[2 marks]Inequalities
Solve the inequality -2(2x - 7) >= 38.

Answer this when you sit the paper.

Question 1202

[1 marks]Inequalities
Illustrate the solution set of -2(2x - 7) >= 38 on the number line.

Answer this when you sit the paper.

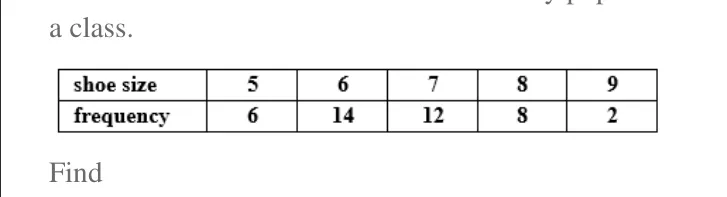

Question 1501

[1 marks]Statistics & Probability
The table shows the sizes of shoes worn by pupils in a class.
shoe size: 5, 6, 7, 8, 9
frequency: 6, 14, 12, 8, 2
Find the total number of pupils in the class.

Answer this when you sit the paper.

Question 1502

[1 marks]Statistics & Probability
The table shows the sizes of shoes worn by pupils in a class.
shoe size: 5, 6, 7, 8, 9
frequency: 6, 14, 12, 8, 2
Find the modal shoe size.

Answer this when you sit the paper.

Question 1503

[1 marks]Statistics & Probability
The table shows the sizes of shoes worn by pupils in a class.
shoe size: 5, 6, 7, 8, 9
frequency: 6, 14, 12, 8, 2
Find the median shoe size.

Answer this when you sit the paper.

Question 2001

[1 marks]Change of Units
A motorist left Masvingo for Beitbridge at 2102. The motorist spent 1 hour 30 minutes mending a puncture and 3 hours driving. The motorist's average speed for the journey was 64 km/h. Express 2102 as a time on the 12-hour notation.

Answer this when you sit the paper.

Question 2002

[1 marks]Change of Units
A motorist left Masvingo for Beitbridge at 2102. The motorist spent 1 hour 30 minutes mending a puncture and 3 hours driving. Find the arrival time in Beitbridge in 24-hour notation.

Answer this when you sit the paper.

Question 2003

[3 marks]Measures & Mensuration
A motorist left Masvingo for Beitbridge at 2102. The motorist spent 1 hour 30 minutes mending a puncture and 3 hours driving. The motorist's average speed for the journey was 64 km/h. (a) Express 2102 as a time on the 12-hour notation. (b) Find the arrival time in Beitbridge in 24-hour notation. (c) Calculate the distance between Masvingo and Beitbridge.

Answer this when you sit the paper.

Question 2401

[2 marks]Consumer Arithmetic
On a certain day, US$100 was exchanged for R880. Calculate the equivalent value of R165 in US$ on that day. [2]

Answer this when you sit the paper.

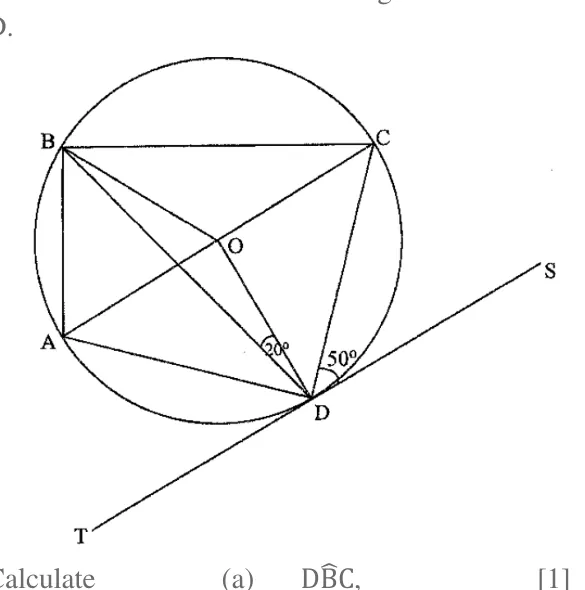

Question 2501

[1 marks]Circle Geometry
In the diagram, points A, B, C and D are on the circumference of a circle with centre O. angle CDS = 50 and angle BDO = 20. Line TS is a tangent to the circle at D. Calculate angle DBC.

Answer this when you sit the paper.

Question 2502

[1 marks]Circle Geometry
In the diagram, points A, B, C and D are on the circumference of a circle with centre O. angle CDS = 50 and angle BDO = 20. Line TS is a tangent to the circle at D. Calculate angle DOC.

Answer this when you sit the paper.

Question 2503

[1 marks]Circle Geometry
In the diagram, points A, B, C and D are on the circumference of a circle with centre O. angle CDS = 50 and angle BDO = 20. Line TS is a tangent to the circle at D. Calculate angle ODC.

Answer this when you sit the paper.

Question 2504

[1 marks]Circle Geometry
In the diagram, points A, B, C and D are on the circumference of a circle with centre O. angle CDS = 50 and angle BDO = 20. Line TS is a tangent to the circle at D. Calculate angle ABD.

Answer this when you sit the paper.

Question 2505

[1 marks]Circle Geometry
In the diagram, points A, B, C and D are on the circumference of a circle with centre O. angle CDS = 50 and angle BDO = 20. Line TS is a tangent to the circle at D. Calculate angle DAC.

Answer this when you sit the paper.

Question 2701

[1 marks]Trigonometry, Bearing & Distances
Point Q is on a bearing of S35 degrees E from point P. Calculate the three-figure bearing of P from Q.

Answer this when you sit the paper.

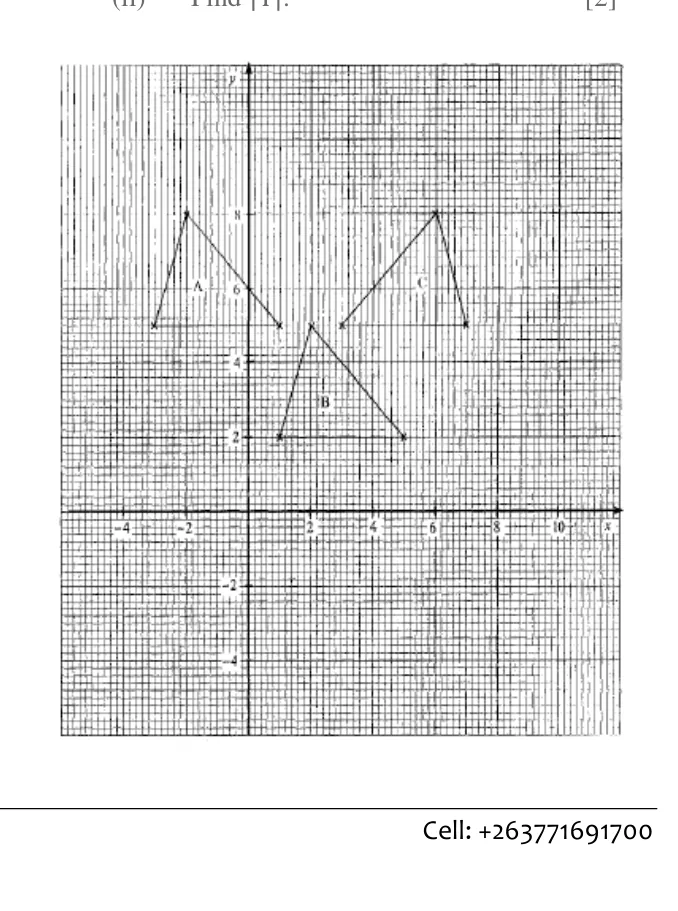

Question 2802

[2 marks]Geometrical Transformation
The diagram shows triangles A, B and C. Triangle A has vertices (-2; 8), (-3; 5) and (1; 5). Triangle C has vertices (6; 8), (3; 5) and (7; 5). Triangle C is the image of triangle A under a transformation M. Describe fully transformation M.

Answer this when you sit the paper.

Question 20101

[1 marks]Approximations & Estimations
Express 31,095 correct to 2 decimal places.

Answer this when you sit the paper.

Question 20102

[1 marks]Approximations & Estimations
Express 31,095 correct to 2 significant figures.

Answer this when you sit the paper.

Question 240201

[2 marks]Change of Units
Express 90 km/h in m/s.

Answer this when you sit the paper.

Question 240202

[1 marks]Travel Graphs
An object starts from rest and accelerates uniformly until its speed is 90 km/h in 5 seconds. Calculate the acceleration of the object in m/s^2.

Answer this when you sit the paper.

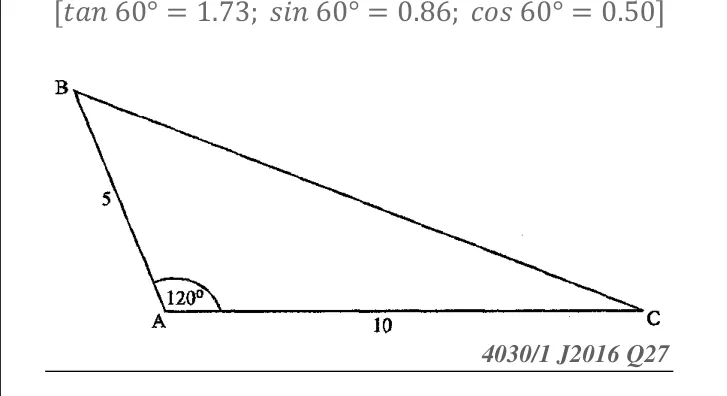

Question 270201

[2 marks]Trigonometry, Bearing & Distances
In the diagram AB = 5 cm, AC = 10 cm and angle BAC = 120 degrees. Using as much of the information given below as is necessary, calculate the area of triangle ABC. [tan 60 = 1,73; sin 60 = 0,86; cos 60 = 0,50]

Answer this when you sit the paper.

Question 270202

[3 marks]Trigonometry, Bearing & Distances
In the diagram AB = 5 cm, AC = 10 cm and angle BAC = 120 degrees. Calculate the length of BC leaving the answer in surd form.

Answer this when you sit the paper.

Question 280101

[2 marks]Geometrical Transformation
The diagram shows triangles A, B and C. Triangle A has vertices (-2; 8), (-3; 5) and (1; 5). Triangle B has vertices (2; 5), (1; 2) and (5; 2). Triangle B is the image of A under a Translation T = (p; q). State the values of p and q.

Answer this when you sit the paper.

Question 280102

[2 marks]Geometrical Transformation
The diagram shows triangles A, B and C. Triangle B is the image of A under a Translation T = (4; -3). Find |T|.

Answer this when you sit the paper.
