Danho
ZIMSEC O Level · 4004/1 · J2019

Mathematics Paper 1 June 2019 (topical set)

Questions
41
Total marks
100
Time allowed
150 min
Syllabus code
4004/1

These questions are attributed to this sitting but were printed in a topical collection, so this is not the whole paper as it was sat.

Sit this paper online

Questions
41
Pass mark
25
Sit this paper

Answer every question in the printed order, get marked at the end, then see the answers.

The questions

Question 1

[3 marks]Fractions, Decimals & Percentages
Express (a) 12/25 as a decimal fraction, (b) 2/5 as a percentage, (c) 0.0375 as a fraction in its lowest terms.

Answer this when you sit the paper.

Question 2

[3 marks]Prime Numbers, Sequences & Types of Numbers
Write down the next term in each of the following sequences. (a) 1 ; 4 ; 9 ; 16 ; 25 ; 36 ; ___ [1] (b) sqrt(2) ; sqrt(3) ; sqrt(5) ; sqrt(7) ; sqrt(11) ; ___ [1] (c) 16 ; 8 ; 4 ; 2 ; 1 ; ___ [1]

Answer this when you sit the paper.

Question 3

[3 marks]Ratios, Rates & Proportions
Three girls aged 12 years, 13 years and 15 years share $100.00 in the ratio of their ages. Calculate the amount of money that each girl receives.

Answer this when you sit the paper.

Question 4

[3 marks]Number Bases
(a) Convert (i) 434_5 to base ten, [1] (ii) 75_10 to base two. [1] (b) Evaluate 377_8 + 411_8, leaving the answer in base 8. [1]

Answer this when you sit the paper.

Question 6

[3 marks]Sets
P, Q and R are three sets that overlap one another, so a Venn diagram of them has seven regions inside the circles. How many of those seven regions make up the set (P' intersect R) union (R' intersect Q)?

Answer this when you sit the paper.

Question 7

[3 marks]Consumer Arithmetic
(a) Convert 647 cents to dollars. [1] (b) The exchange rate for converting United States dollars to South African rand is US$1 : R13.80. Calculate the equivalent of US$75.90 in Rands. [2]

Answer this when you sit the paper.

Question 8

[3 marks]Simultaneous Equations
Solve the simultaneous equations: 5x - 2y = 26, 3x + 4y = 0.

Answer this when you sit the paper.

Question 9

[3 marks]Measures & Mensuration
The sides of a parallelogram are of lengths 10 cm and 8 cm. One of the interior angles of the parallelogram is 150 degrees. Calculate the area of the parallelogram. Use as much of the information given below as is necessary. [tan 30 = 0,577; cos 30 = 0,866; sin 30 = 0,5]

Answer this when you sit the paper.

Question 10

[3 marks]Probability
A box contains 20 sweets which are identical in shape and size except for colour. Eight of the sweets are yellow and twelve are green. (a) Calculate the probability of picking a yellow sweet. [1] (b) Two sweets are picked at random from the box. Calculate the probability that the sweets are of the same colour. [2]

Answer this when you sit the paper.

Question 11

[3 marks]Polygons, Symmetry & Circles

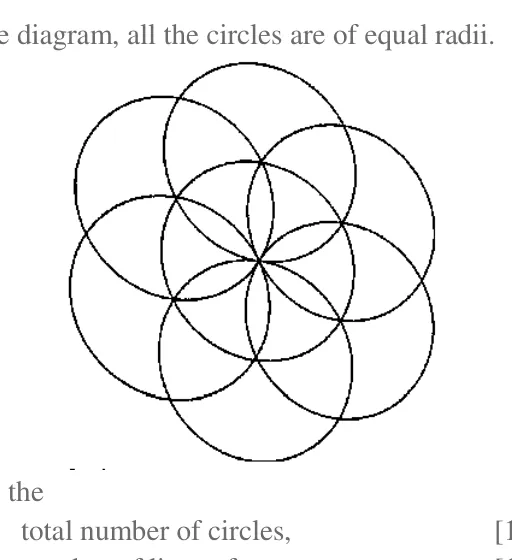

In the diagram, all the circles are of equal radii. State the (a) total number of circles, [1] (b) number of lines of symmetry, [1] (c) order of rotational symmetry. [1]

Answer this when you sit the paper.

Question 12

[4 marks]Logarithms
It is given that log 6 = 0.7781 and log 5 = 0.6990. Calculate (a) log 30, (b) log 1 200 000.

Answer this when you sit the paper.

Question 13

[4 marks]Polygons, Symmetry & Circles
(a) Calculate the size of one exterior angle of an 18-sided regular polygon. [2] (b) Calculate the sum of the interior angles of a heptagon (7-sided polygon). [2]

Answer this when you sit the paper.

Question 14

[4 marks]Variation
The number of people, N, who favour a certain type of energy drink varies directly as the population size, S. In a population of 1 000 people, only 40 people were reported to favour that type of energy drink. (a) Form an equation connecting N and S. [2] (b) Find the population size, S from which 180 people favour that type of energy drink. [2]

Answer this when you sit the paper.

Question 17

[4 marks]Factorisation, H.C.F & L.C.M
(a) Factorise (i) p^2 - 4, (ii) 2p^2 + 7p + 6. (b) Hence or otherwise, find the Highest Common Factor (H.C.F) of p^2 - 4 and 2p^2 + 7p + 6.

Answer this when you sit the paper.

Question 18

[4 marks]Measures & Mensuration
A right circular cone has a base diameter of 24 cm and a slant height of 15 cm. Calculate the (a) vertical height of the cone, (b) volume of the cone in terms of pi. [volume of cone = (1/3) pi r^2 h]

Answer this when you sit the paper.

Question 22

[4 marks]Ordinary & Standard Form
(a) Express in standard form (i) 618 000, [1] (ii) 0.000 423. [1] (b) Evaluate (8.76 x 10^-2) + (7.89 x 10^-2), leaving the answer in standard form. [2]

Answer this when you sit the paper.

Question 23

[4 marks]Vector Geometry

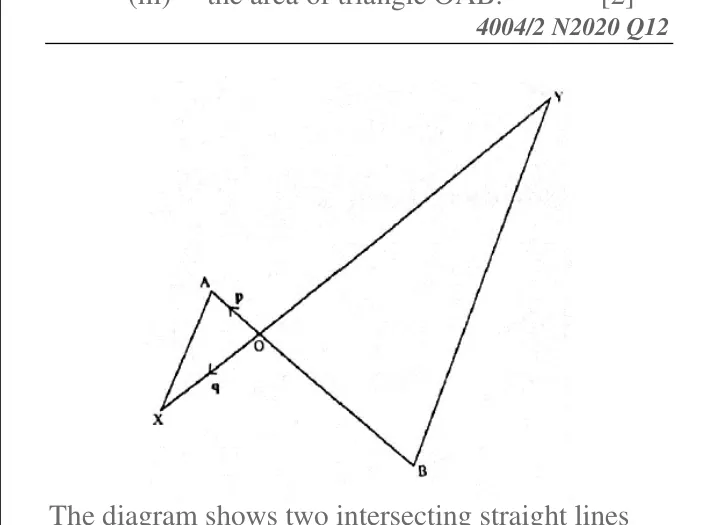

The diagram shows two intersecting straight lines AOB and XOY. OA = p and OX = q. AO/OB = XO/OY = 1/3. (a) Express in terms of p and/or q (i) AX, [1] (ii) BY. [1] (b) State any two relationships between the lines AX and YB. [2]

Answer this when you sit the paper.

Question 501

[1 marks]Circle Geometry

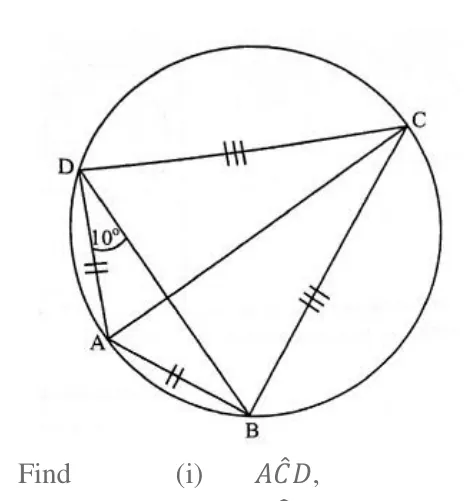

In the diagram, ABCD is a cyclic quadrilateral in which AB = AD and BC = DC. AC is the diameter of the circle and angle ADB = 10. State the special name given to the cyclic quadrilateral ABCD.

Answer this when you sit the paper.

Question 502

[1 marks]Circle Geometry
In the diagram, ABCD is a cyclic quadrilateral in which AB = AD and BC = DC. AC is the diameter of the circle and angle ADB = 10. Find angle ACD.

Answer this when you sit the paper.

Question 503

[1 marks]Circle Geometry
In the diagram, ABCD is a cyclic quadrilateral in which AB = AD and BC = DC. AC is the diameter of the circle and angle ADB = 10. Find angle ADC.

Answer this when you sit the paper.

Question 1501

[1 marks]Trigonometry, Bearing & Distances
In a rectangle ABCD, AB = 12 cm and BC = 5 cm. Express as a common fraction, tan ACD.

Answer this when you sit the paper.

Question 1502

[2 marks]Trigonometry, Bearing & Distances
In a rectangle ABCD, AB = 12 cm and BC = 5 cm. Express as a common fraction, cos DAC.

Answer this when you sit the paper.

Question 1503

[1 marks]Trigonometry, Bearing & Distances
In a rectangle ABCD, AB = 12 cm and BC = 5 cm. Express as a common fraction, sin BDC.

Answer this when you sit the paper.

Question 1601

[1 marks]Statistics & Probability
The masses of 6 bags of mealie-meal on the shelf of a shop were as follows:
5 kg; 5 kg; 10 kg; 10 kg; 10 kg; 20 kg.
Find the modal mass.

Answer this when you sit the paper.

Question 1602

[1 marks]Statistics & Probability
The masses of 6 bags of mealie-meal on the shelf of a shop were as follows:
5 kg; 5 kg; 10 kg; 10 kg; 10 kg; 20 kg.
Find the median mass.

Answer this when you sit the paper.

Question 1603

[2 marks]Statistics & Probability
The masses of 6 bags of mealie-meal on the shelf of a shop were as follows:
5 kg; 5 kg; 10 kg; 10 kg; 10 kg; 20 kg.
Find the mean mass.

Answer this when you sit the paper.

Question 1901

[1 marks]Functional Notation
It is given that f(x) = 3x^2 - 2x - 8. Find f(-4).

Answer this when you sit the paper.

Question 1902

[3 marks]Functional Notation
It is given that f(x) = 3x^2 - 2x - 8. Find the values of x for which f(x) = 0.

Answer this when you sit the paper.

Question 2001

[2 marks]Laws of Indices
Solve the equation x^(2/3) = 4.

Answer this when you sit the paper.

Question 2002

[2 marks]Linear Equations
Solve the equation 2/(x - 2) = 3/(x + 2).

Answer this when you sit the paper.

Question 2101

[2 marks]Inequalities & Linear Programming
The unshaded region of a linear programming graph is bounded by three straight lines: the xx-axis, the line through the origin and the point (100;200)(100; 200), and a broken line through (0;300)(0; 300) and (300;0)(300; 0). The point (150;50)(150; 50) lies inside the region. Write down the inequality that the broken line contributes.

Answer this when you sit the paper.

Question 2102

[2 marks]Inequalities & Linear Programming
A region is defined by y≥0y\geq0, y≤2xy\leq2x and x+y<300x+y<300. Find the greatest value of x+yx+y, given that xx and yy are integers.

Answer this when you sit the paper.

Question 2401

[1 marks]Trigonometry, Bearing & Distances
Moyo village is 5 km away from Dube village on a bearing of 020 degrees. Ncube village is 6 km away from Dube village on a bearing of 060 degrees. Find the bearing of Dube village from Moyo village.

Answer this when you sit the paper.

Question 2402

[3 marks]Trigonometry, Bearing & Distances
Moyo village is 5 km away from Dube village on a bearing of 020 degrees. Ncube village is 6 km away from Dube village on a bearing of 060 degrees. Find the distance from Moyo village to Ncube village, leaving the answer in surd form. [cos 40 = 0,77; sin 40 = 0,64; tan 40 = 0,84]

Answer this when you sit the paper.

Question 2501

[2 marks]Similarity & Congruency
Two similar bottles are of heights 8 cm and 16 cm. The bases of the similar bottles are also similar. The surface area of the base of the smaller bottle is 1.44 cm^2. Find the surface area of the base of the bigger bottle.

Answer this when you sit the paper.

Question 2502

[2 marks]Similarity & Congruency
Two similar bottles are of heights 8 cm and 16 cm. Find the volume of the smaller bottle if the volume of the bigger bottle is 16 cm^3.

Answer this when you sit the paper.

Question 2601

[3 marks]Geometrical Transformation

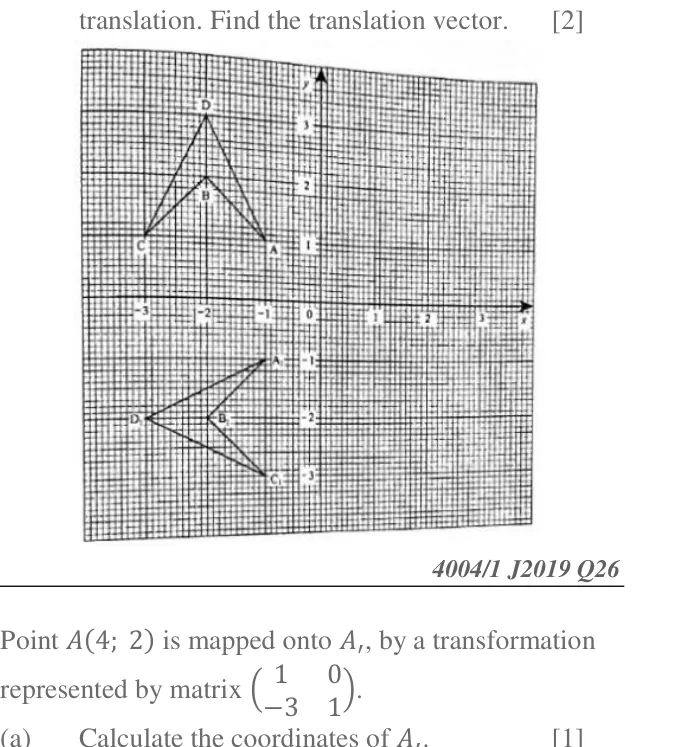

The diagram shows two quadrilaterals ABCD and A1B1C1D1 on the Cartesian plane. ABCD has vertices A(-1; 1), B(-2; 2), C(-3; 1) and D(-2; 3). A1B1C1D1 has vertices A1(-1; -1), B1(-2; -2), C1(-1; -3) and D1(-3; -2). Describe fully the single transformation which maps ABCD onto A1B1C1D1.

Answer this when you sit the paper.

Question 2602

[2 marks]Geometrical Transformation
The diagram shows two quadrilaterals ABCD and A1B1C1D1 on the Cartesian plane. ABCD has vertices A(-1; 1), B(-2; 2), C(-3; 1) and D(-2; 3). Point A2(1; -2) is the image of A under a translation. Find the translation vector.

Answer this when you sit the paper.

Question 2701

[2 marks]Travel Graphs

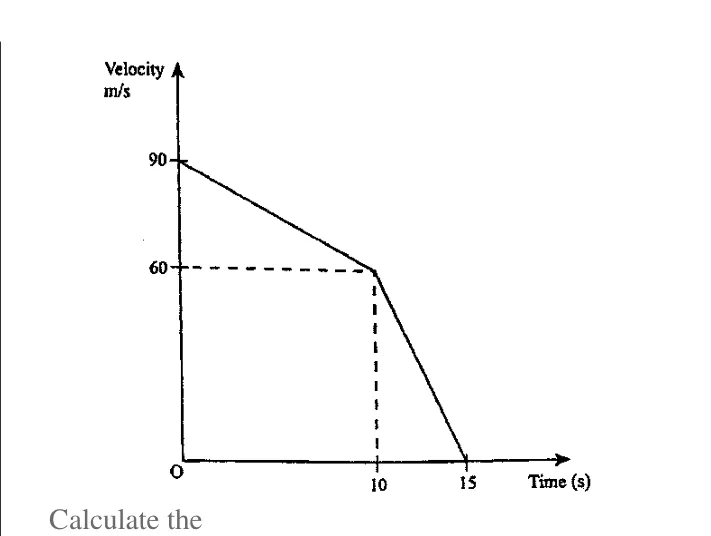

The diagram is a velocity-time graph of an object which decelerates uniformly from a velocity of 90 m/s to a velocity of 60 m/s in 10 seconds. It then decelerates uniformly to rest in a further 5 seconds. Calculate the total distance covered by the object during the 15 seconds.

Answer this when you sit the paper.

Question 2702

[2 marks]Travel Graphs
The diagram is a velocity-time graph of an object which decelerates uniformly from a velocity of 90 m/s to a velocity of 60 m/s in 10 seconds. It then decelerates uniformly to rest in a further 5 seconds. Calculate the average velocity of the object during the 15 seconds.

Answer this when you sit the paper.

Question 2703

[2 marks]Travel Graphs
The diagram is a velocity-time graph of an object which decelerates uniformly from a velocity of 90 m/s to a velocity of 60 m/s in 10 seconds. It then decelerates uniformly to rest in a further 5 seconds. Calculate the deceleration of the object during the last five seconds.

Answer this when you sit the paper.
