ZIMSEC O Level · 4008/1 · J2010

Mathematics Paper 1 June 2010 (topical set)

Questions
46 of 47
Total marks
105
Time allowed
150 min
Syllabus code
4008/1

We hold fewer questions than the paper printed. The rest are not in the bank yet.

These questions are attributed to this sitting but were printed in a topical collection, so this is not the whole paper as it was sat.

Sit this paper online

Questions
46
Pass mark
28
Sit this paper

Answer every question in the printed order, get marked at the end, then see the answers.

The questions

Question 1

[2 marks]Fractions, Decimals & Percentages
(a)(ii) Express 0.096 as a common fraction, giving your answer in its lowest terms. (b) Express 36 minutes as a percentage of two hours.

Answer this when you sit the paper.

Question 2

[3 marks]Ordinary & Standard Form
(a) Write down, in ordinary form, the value of 4.32 x 10^4. [1] (b) Given that M = 3.6 x 10^2 and N = 8 x 10^-1, find in standard form, the value of (i) MN, [1] (ii) M + N. [1]

Answer this when you sit the paper.

Question 4

[3 marks]Number Bases
(a) Convert 408 to a number in base 6. [1] (b) Write down 2 x 3^4 + 1 x 3^2 + 2 x 3^1 as a number in base 3. [1] (c) Given that 42_x + 53_x = 125_x, find the value of x. [1]

Answer this when you sit the paper.

Question 5

[3 marks]Laws of Indices
Given that m = 1/2, n = 0 and r = 3, evaluate (a) (mr)^n, (b) (2 1/4)^m, (c) the r-th root of -64.

Answer this when you sit the paper.

Question 6

[3 marks]Ratios, Rates & Proportions
(a) Given that 12 : d = 3 : 7, find the value of d. [1] (b) A sum of money is divided in the ratio 2 : 3 : 7. Given that the largest share is $224 000, calculate the smallest share. [2]

Answer this when you sit the paper.

Question 7

Sets

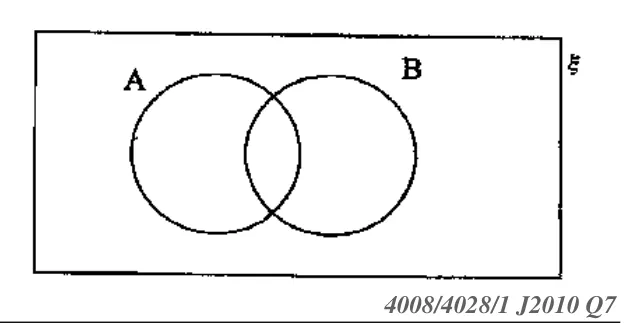

Given that n(xi) = 25, n(A) = 12, n(B') = 6 and n((A union B)') = 2, complete the Venn diagram to show the number of elements in each subset.

Answer this when you sit the paper.

Question 9

[3 marks]Simultaneous Equations
Solve the simultaneous equations: (1/2)x + 3y = 4, 3x + 2y = 8.

Answer this when you sit the paper.

Question 10

[3 marks]Consumer Arithmetic
A company director went to Britain and America on business. Her company gave her an allowance of £2000. (a) While in Britain she spent 1/5 of her allowance. Calculate the amount she spent. [1] (b) On arrival in America she converted all her remaining allowance into US$ at the rate of £1 to US$1,92. Calculate the amount she received in US$. [2]

Answer this when you sit the paper.

Question 13

[3 marks]Vector Geometry
It is given that p = (4; -6) and q = (6; x). Find (a) x if p is parallel to q, [1] (b) |p|, leaving your answer in surd form. [2]

Answer this when you sit the paper.

Question 14

[3 marks]Polygons, Symmetry & Circles
A quadrilateral has exactly one line of symmetry, and that line of symmetry is one of its diagonals. Write down the name of this quadrilateral.

Answer this when you sit the paper.

Question 16

[3 marks]Matrices
It is given that D is a 2 by 2 matrix such that D + (-6 -8; 3 4) = (0 0; 0 0). (a) Find D. (b) Write down the determinant of (-6 -8; 3 4).

Answer this when you sit the paper.

Question 18

[3 marks]Measures & Mensuration

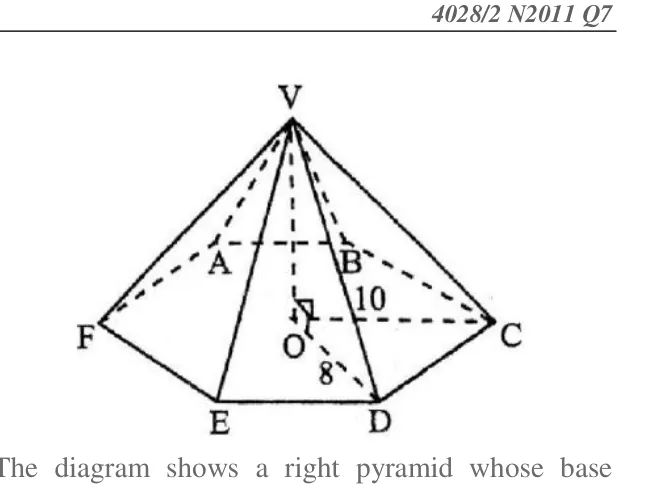

The diagram shows a right pyramid whose base ABCDEF is a regular hexagon of centre O. OD = 8 m, VD = 10 m and the area of triangle DOC = 15,6 m^2. (a) Show that the height (VO) of the pyramid is 6 m. (b) Find the volume of the pyramid. [Volume of pyramid = (1/3) base area x height]

Answer this when you sit the paper.

Question 19

[4 marks]Variation

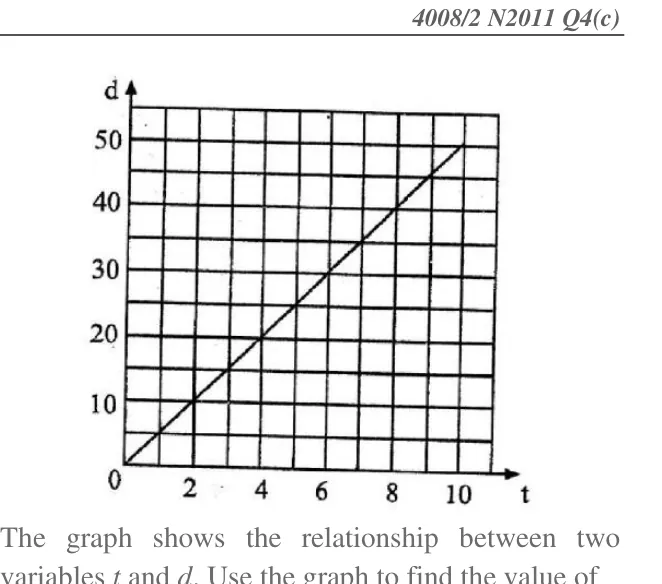

The graph shows the relationship between two variables t and d, a straight line through the origin passing through (2, 10), (4, 20), (6, 30), (8, 40) and (10, 50). Use the graph to find the value of (a) d when t = 7, [1] (b) t when d = 20, [1] (c) k when t = kd. [2]

Answer this when you sit the paper.

Question 20

[3 marks]Scales & Simple Map Problems
A map is drawn to a scale of 1 : 100 000. (a) Find the distance on the map between two villages which are 24 km apart on the ground, giving your answer in cm. [1] (b) Calculate the actual area of a farm in hectares, which is represented by 408 cm^2 on the map. [2]

Answer this when you sit the paper.

Question 22

[4 marks]Logarithms
Simplify as far as possible (a) log 9 / log 3, (b) 4 log 2 + log 20 - log 3,2.

Answer this when you sit the paper.

Question 23

[4 marks]Co-ordinate Geometry

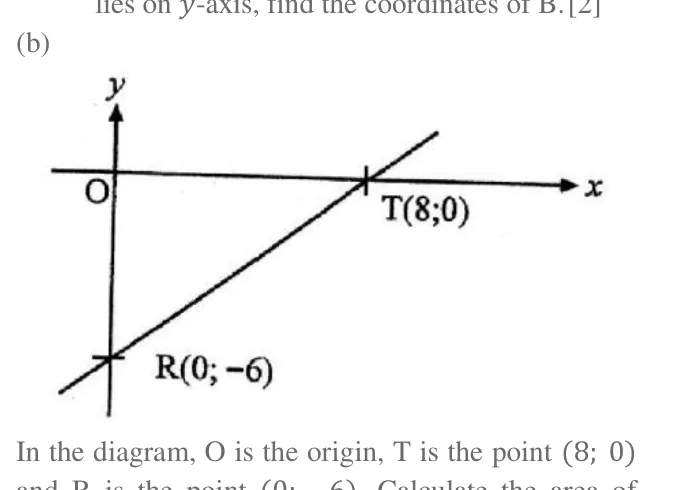

(a) A line passes through the points A(2; 4) and B(x; y) and has gradient 1 1/2. Given that B lies on the y-axis, find the coordinates of B. (b) In the diagram, O is the origin, T is the point (8; 0) and R is the point (0; -6). Calculate the area of triangle TOR.

Answer this when you sit the paper.

Question 25

[3 marks]Measures & Mensuration

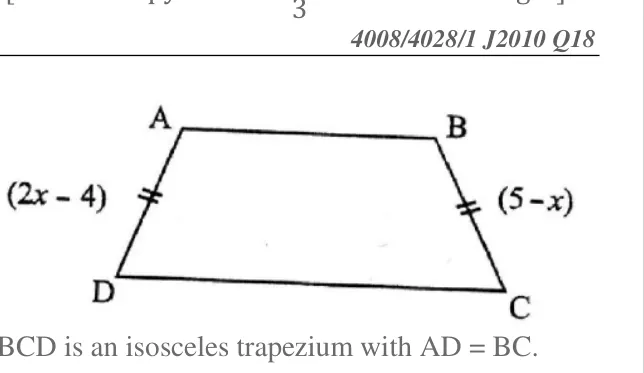

ABCD is an isosceles trapezium with AD = BC. (a) Given that AD = (2x - 4) cm and BC = (5 - x) cm, form an equation in x and solve it. (b) Given also that AB = (2x + 6) cm and DC = 14 cm, find the numerical value of the perimeter of the trapezium.

Answer this when you sit the paper.

Question 26

[4 marks]Constructions & Loci
In triangle XYZ, YZ = 9,5 cm, XY = 5,2 cm and ZX = 8,3 cm. N is the foot of the perpendicular from X to YZ. Calculate the length of XN, correct to 1 decimal place.

Answer this when you sit the paper.

Question 27

[4 marks]Polygons, Symmetry & Circles

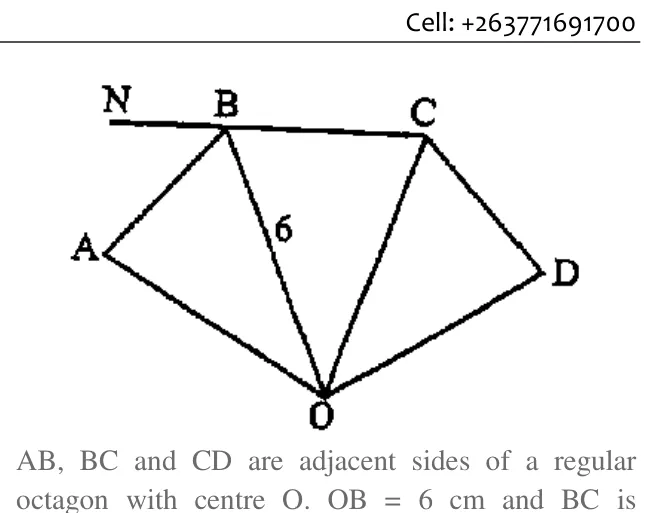

AB, BC and CD are adjacent sides of a regular octagon with centre O. OB = 6 cm and BC is produced to N. Using as much of the information given below as is necessary, calculate (a) angle NBA, [1] (b) angle AOB, [1] (c) the area of triangle AOB. [2] [sin 45° = cos 45° = 0,7; tan 45° = 1]

Answer this when you sit the paper.

Question 301

[2 marks]Factorisation, H.C.F & L.C.M
For the expressions 12m^3n^2 and 18m^2n^3, find (i) the H.C.F, (ii) the L.C.M.

Answer this when you sit the paper.

Question 302

[1 marks]Algebraic Expressions
Simplify 6x + 12x / 3.

Answer this when you sit the paper.

Question 502

[1 marks]Substitution
Given that m = 1/2, n = 0 and r = 3, evaluate (2 1/4)^m.

Answer this when you sit the paper.

Question 503

[1 marks]Substitution
Given that m = 1/2, n = 0 and r = 3, evaluate the r-th root of -64.

Answer this when you sit the paper.

Question 801

[1 marks]Rational, Irrational Numbers & Surds
Simplify sqrt(50), leaving your answer in the form a sqrt(b).

Answer this when you sit the paper.

Question 802

[2 marks]Change of Units
Find, in km/h, the rate at which a car travels if it covers 24 metres in 1 second.

Answer this when you sit the paper.

Question 1101

[1 marks]Linear Equations
Solve the equation 3/y = 12/11.

Answer this when you sit the paper.

Question 1102

[2 marks]Quadratic Equations
Solve the equation x^2 + 5x = 24.

Answer this when you sit the paper.

Question 1201

[1 marks]Trigonometry, Bearing & Distances

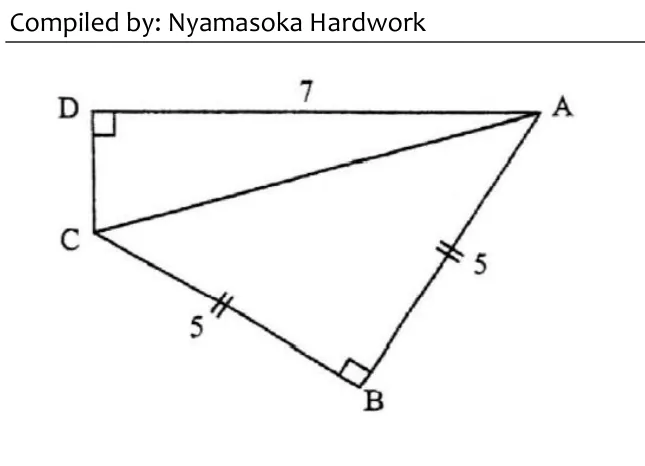

In the diagram, angle ABC = angle ADC = 90 degrees, AB = BC = 5 cm and AD = 7 cm. Write down the value of tan BAC.

Answer this when you sit the paper.

Question 1202

[2 marks]Trigonometry, Bearing & Distances
In the diagram, angle ABC = angle ADC = 90 degrees, AB = BC = 5 cm and AD = 7 cm. Calculate the length of the line DC.

Answer this when you sit the paper.

Question 1501

[1 marks]Inequalities & Linear Programming
Given that x >= 0,5, state the least possible value of x if x is a prime number.

Answer this when you sit the paper.

Question 1502

[2 marks]Inequalities & Linear Programming

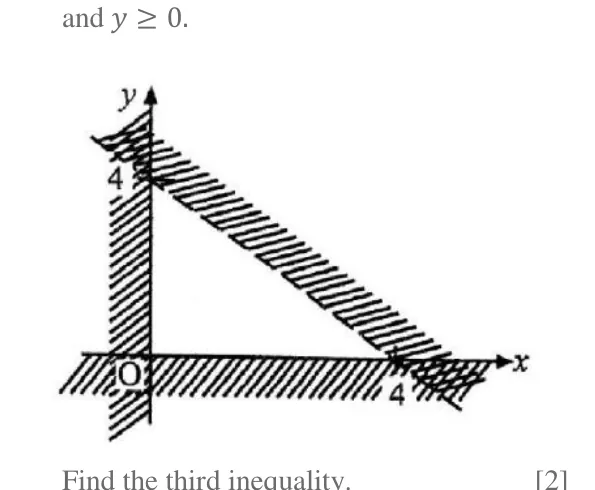

The diagram shows the region defined by three inequalities, two of which are x >= 0 and y >= 0. Find the third inequality.

Answer this when you sit the paper.

Question 1701

[1 marks]Trigonometry, Bearing & Distances

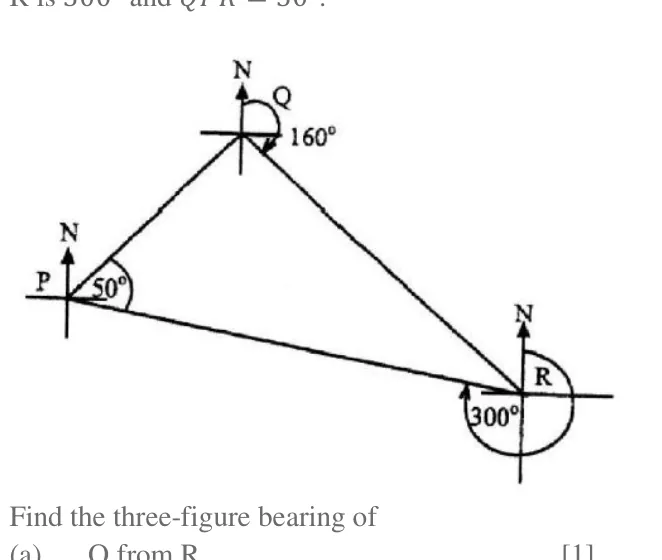

P, Q and R are three points on level ground. The bearing of R from Q is 160 degrees, the bearing of P from R is 300 degrees and angle QPR = 50 degrees. Find the three-figure bearing of Q from R.

Answer this when you sit the paper.

Question 1702

[2 marks]Trigonometry, Bearing & Distances
P, Q and R are three points on level ground. The bearing of R from Q is 160 degrees, the bearing of P from R is 300 degrees and angle QPR = 50 degrees. Find the three-figure bearing of Q from P.

Answer this when you sit the paper.

Question 2101

[1 marks]Similarity & Congruency

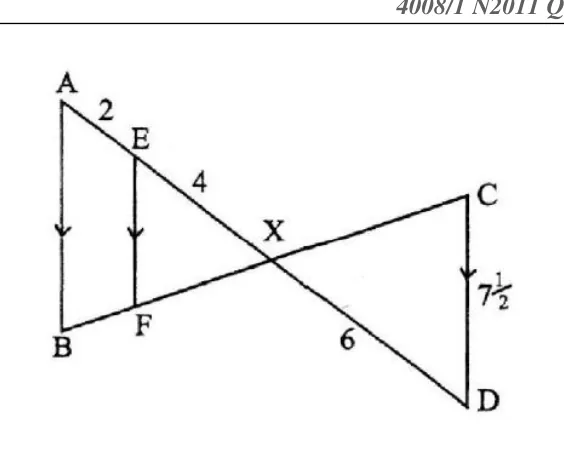

In the diagram, AEXD and BFXC are straight lines. AE = 2 cm, EX = 4 cm, XD = 6 cm and CD = 7 1/2 cm. AB, EF and CD are parallel. Name, in correct order, the triangle which is congruent to triangle XCD.

Answer this when you sit the paper.

Question 2102

[1 marks]Similarity & Congruency
In the diagram, AEXD and BFXC are straight lines, AE = 2 cm, EX = 4 cm, XD = 6 cm, CD = 7 1/2 cm and AB, EF and CD are parallel. Name, in correct order, the triangle which is similar to but not congruent to triangle XCD.

Answer this when you sit the paper.

Question 2103

[2 marks]Similarity & Congruency
In the diagram, AEXD and BFXC are straight lines, AE = 2 cm, EX = 4 cm, XD = 6 cm, CD = 7 1/2 cm and AB, EF and CD are parallel. Find the length of EF.

Answer this when you sit the paper.

Question 2401

[2 marks]Change of Subject of Formula
It is given that t = 2 pi sqrt(d/g). Find t when pi = 22/7, d = 490 and g = 10.

Answer this when you sit the paper.

Question 2402

[2 marks]Change of Subject of Formula
It is given that t = 2 pi sqrt(d/g). Make d the subject of the formula.

Answer this when you sit the paper.

Question 2801

[1 marks]Circle Geometry

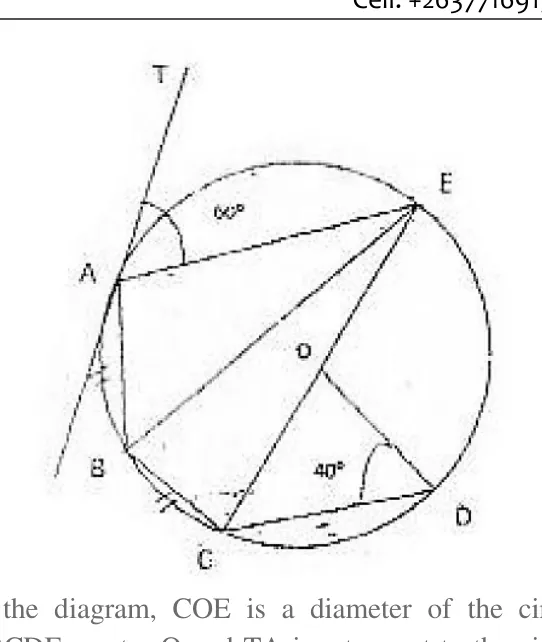

In the diagram, COE is a diameter of the circle ABCDE, centre O and TA is a tangent to the circle at A. angle TAE = 60, angle ODC = 40 and arc AB = arc BC. Find angle CBE.

Answer this when you sit the paper.

Question 2802

[1 marks]Circle Geometry
In the diagram, COE is a diameter of the circle ABCDE, centre O and TA is a tangent to the circle at A. angle TAE = 60, angle ODC = 40 and arc AB = arc BC. Find angle ABE.

Answer this when you sit the paper.

Question 2803

[2 marks]Circle Geometry
In the diagram, COE is a diameter of the circle ABCDE, centre O and TA is a tangent to the circle at A. angle TAE = 60, angle ODC = 40 and arc AB = arc BC. Find angle BEC.

Answer this when you sit the paper.

Question 2804

[1 marks]Circle Geometry
In the diagram, COE is a diameter of the circle ABCDE, centre O and TA is a tangent to the circle at A. angle TAE = 60, angle ODC = 40 and arc AB = arc BC. Find angle EOD.

Answer this when you sit the paper.

Question 2901

[2 marks]Trigonometry, Bearing & Distances

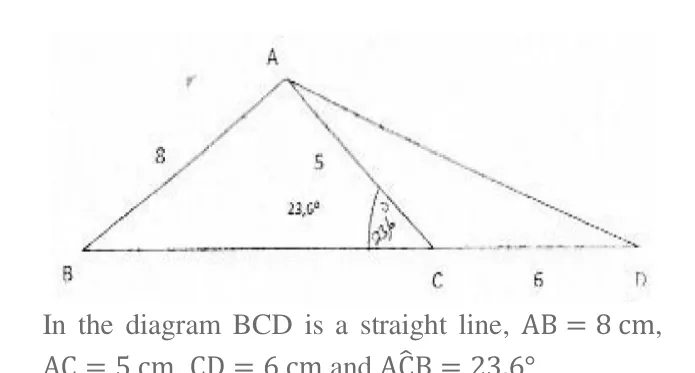

In the diagram BCD is a straight line, AB = 8 cm, AC = 5 cm, CD = 6 cm and angle ACB = 23,6 degrees. Using as much of the information given below as is necessary, calculate the value of sin ABC, giving your answer as a common fraction in its lowest terms. [sin 23,6 = 0,40; cos 23,6 = 0,92; tan 23,6 = 0,44]

Answer this when you sit the paper.

Question 2902

[3 marks]Trigonometry, Bearing & Distances
In the diagram BCD is a straight line, AB = 8 cm, AC = 5 cm, CD = 6 cm and angle ACB = 23,6 degrees. Calculate AD^2. [sin 23,6 = 0,40; cos 23,6 = 0,92; tan 23,6 = 0,44]

Answer this when you sit the paper.

Question 10101

[1 marks]Approximations & Estimations
Express 0.096 correct to two decimal places.

Answer this when you sit the paper.

Question 50102

[1 marks]Substitution
Given that m = 1/2, n = 0 and r = 3, evaluate (mr)^n.

Answer this when you sit the paper.
