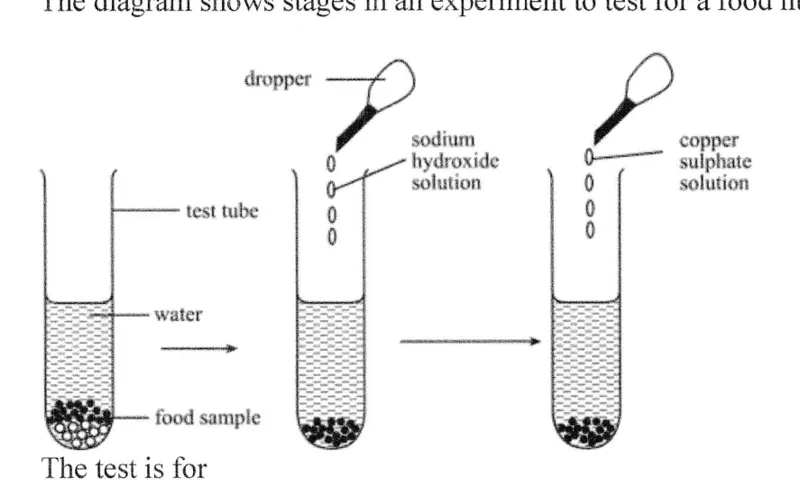

The diagram shows stages in an experiment to test for a food nutrient.
The test is for

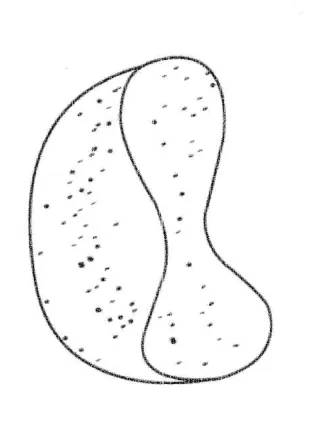

The diagram shows a specialized cell.
The cell is specialised for

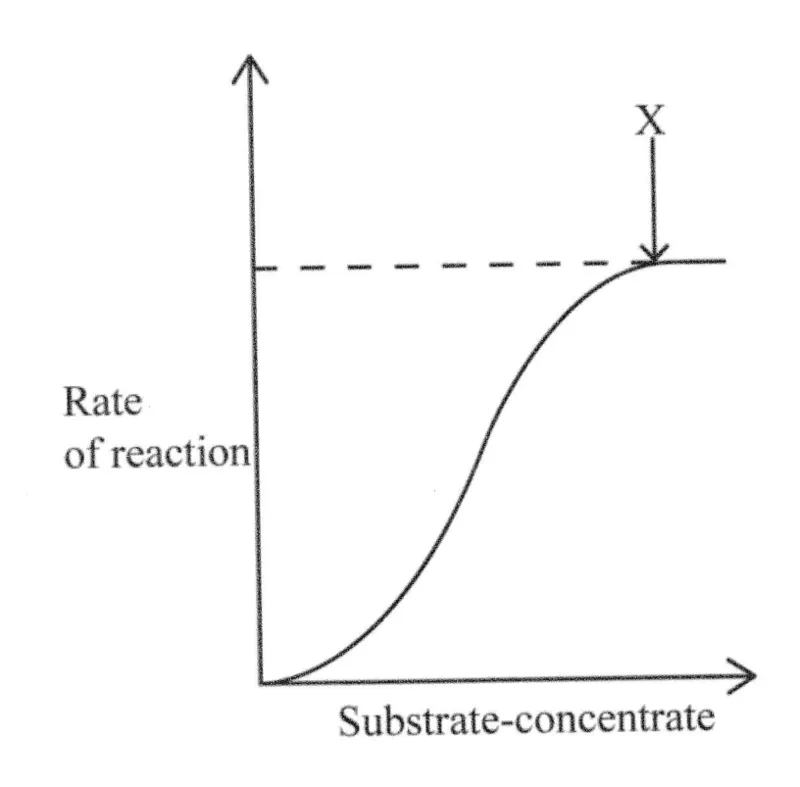

The graph shows the effect of substrate concentration on the rate of an enzyme-controlled reaction.
At point X, the active sites are
Some plants, grown in a greenhouse, are supplied with all nutrients required for growth. The temperature is maintained at optimum and the supply of water is adequate. The plants have short roots and stems.
To promote shoot and root elongation in the plants, they can be sprayed with

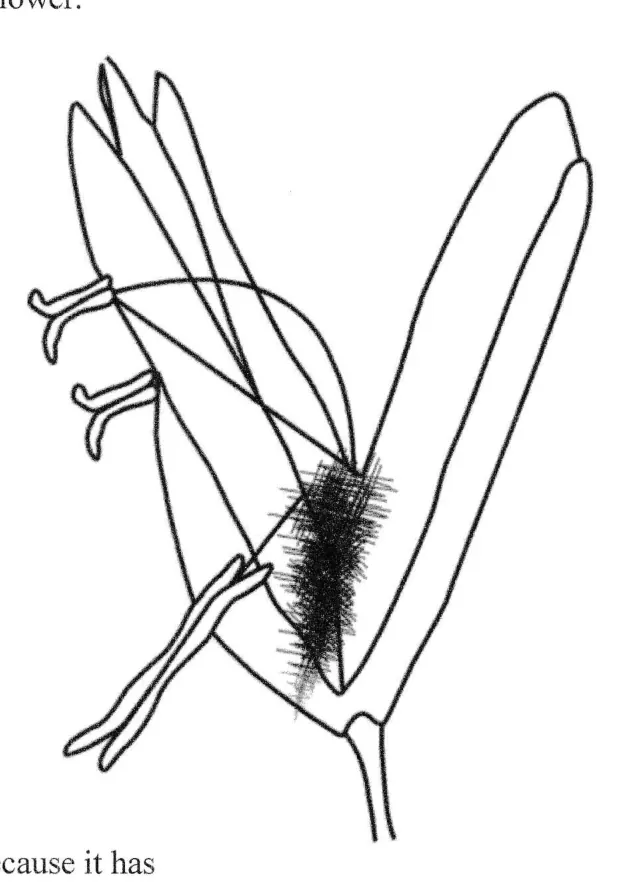

The diagram shows a flower.
It is wind pollinated because it has

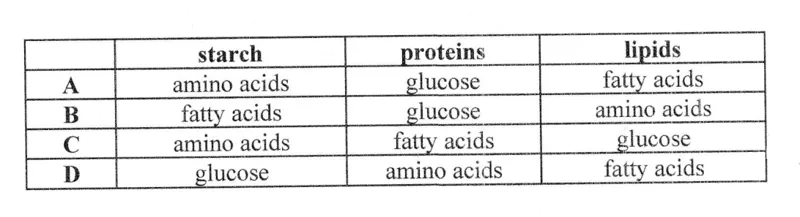

The table shows the end products of digestion of starch, proteins and lipids.
Which row, A, B, C or D, is correct?

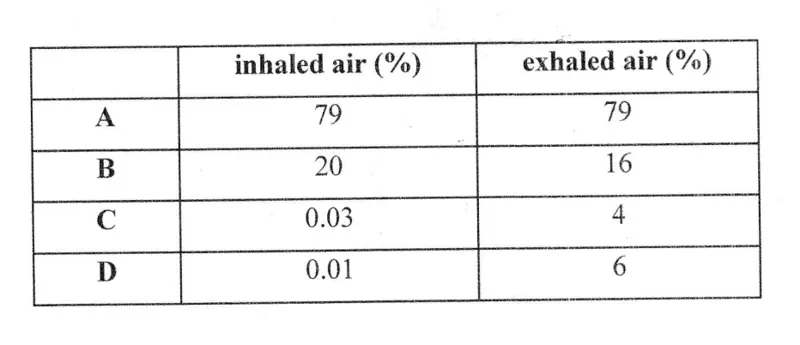

The table shows the carbon dioxide percentage composition of inhaled and exhaled air.
Which row, A, B, C or D, shows the correct percentage in inhaled air and exhaled air?

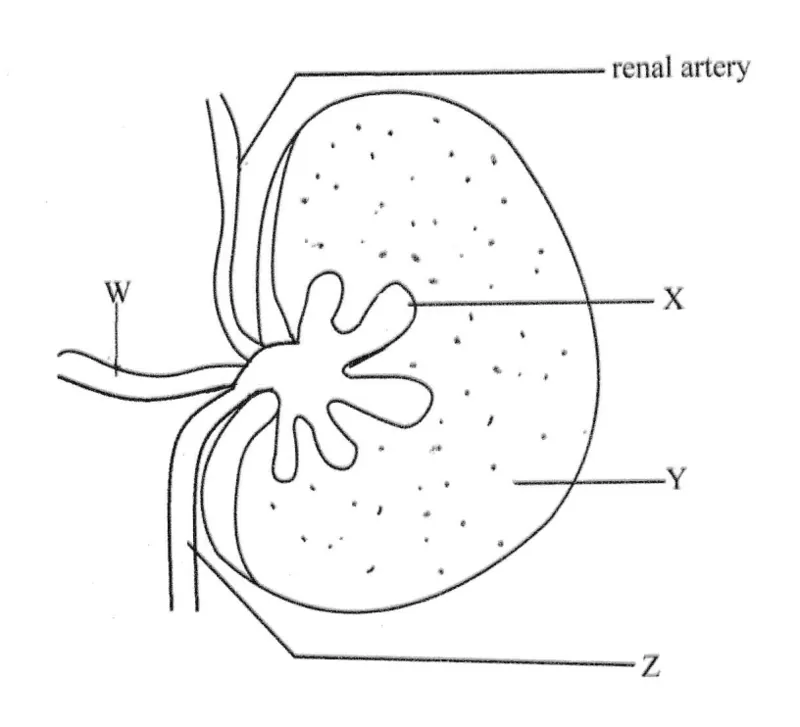

The diagram shows the cross section of a kidney.
Which part, W, X, Y or Z has the least concentration of urea?

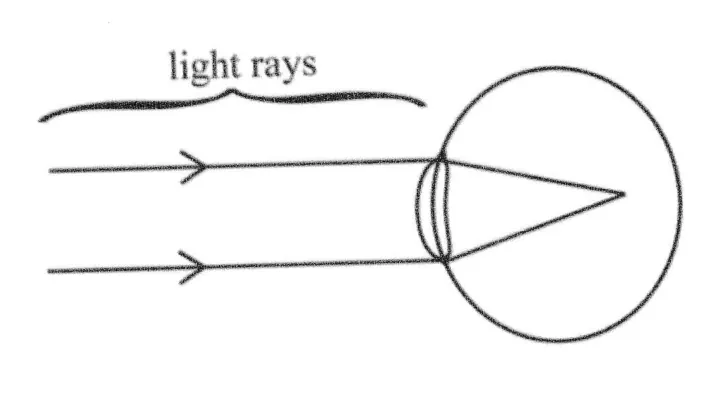

The diagram shows an eyesight defect which needs to be corrected.
The defect can be corrected by use of
The gene for eye colour has two alleles, an allele for blue eyes (b) and an allele brown eyes (B). The allele for blue eyes is recessive to that for brown eyes. A blue eyed mother has children, half are blue eyed and half are brown eyed.
What is the genotype and phenotype of the biological father?
A normal carrier male had a child with a female with albinism.
What is the probability of them having a normal child?
The discovery of antibiotics has made it possible to cure infections caused by bacteria. Some bacteria are now resistant to antibiotics.
This is as a result of

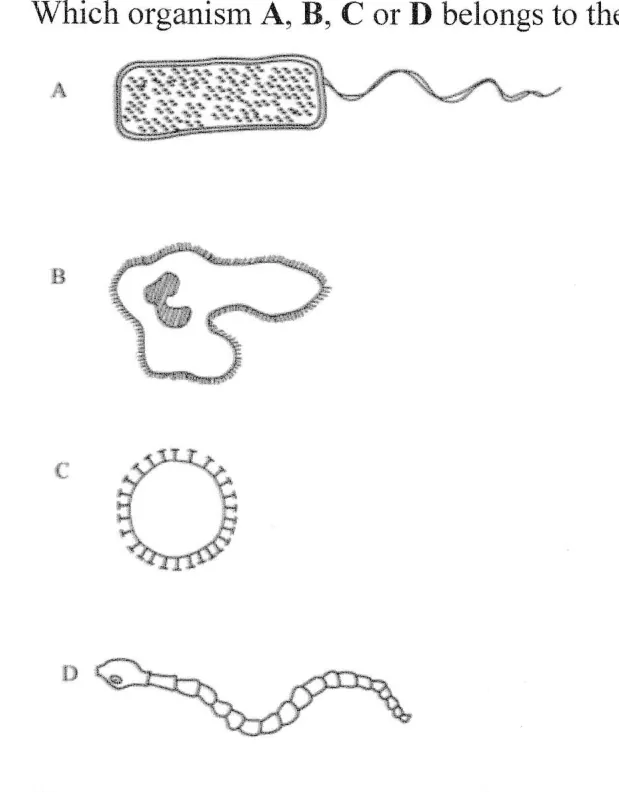

The diagram shows different microorganisms.
Which organism A, B, C or D belongs to the same family as the 2019 Novel Corona Virus?
The steps numbered 1 to 5 show the sequence of events for a process, X.
1. nitrates and phosphates from raw sewage and fertilisers washed into water bodies
2. algae absorb nutrients and grow
3. algae form a blanket on water surface blocking out the sun
4. algae die
5. bacteria decompose dead algae using oxygen for respiration
Process X is

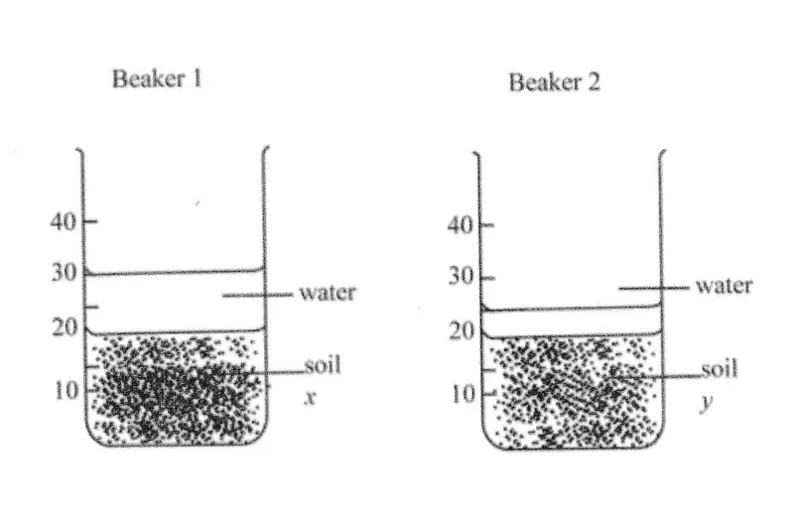

20 cm3 of soil x was put in beaker 1 and 20 cm3 of soil y was put in beaker 2. 20 cm3 of water was added to each beaker and the resultant volumes are as shown in the diagrams.
The difference in the final volume is caused by larger

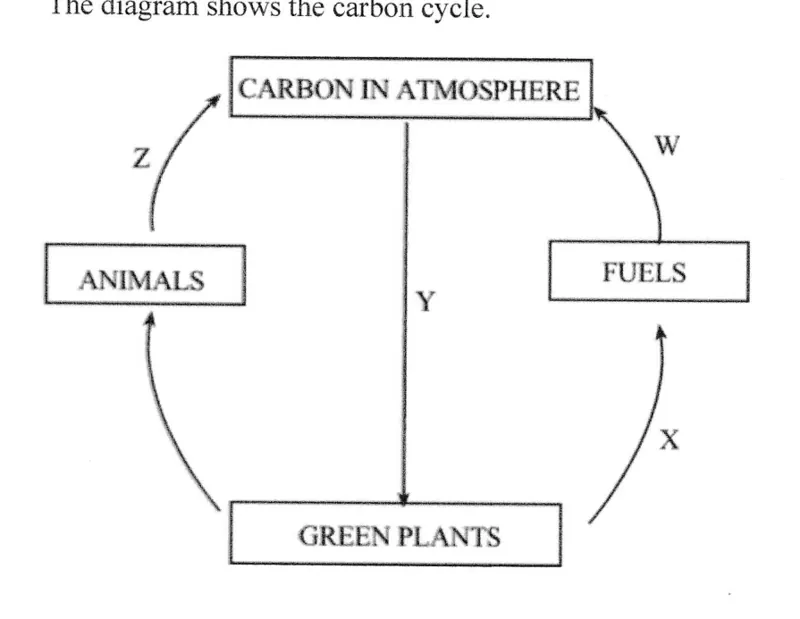

The diagram shows the carbon cycle.
Arrow X represents
